Description

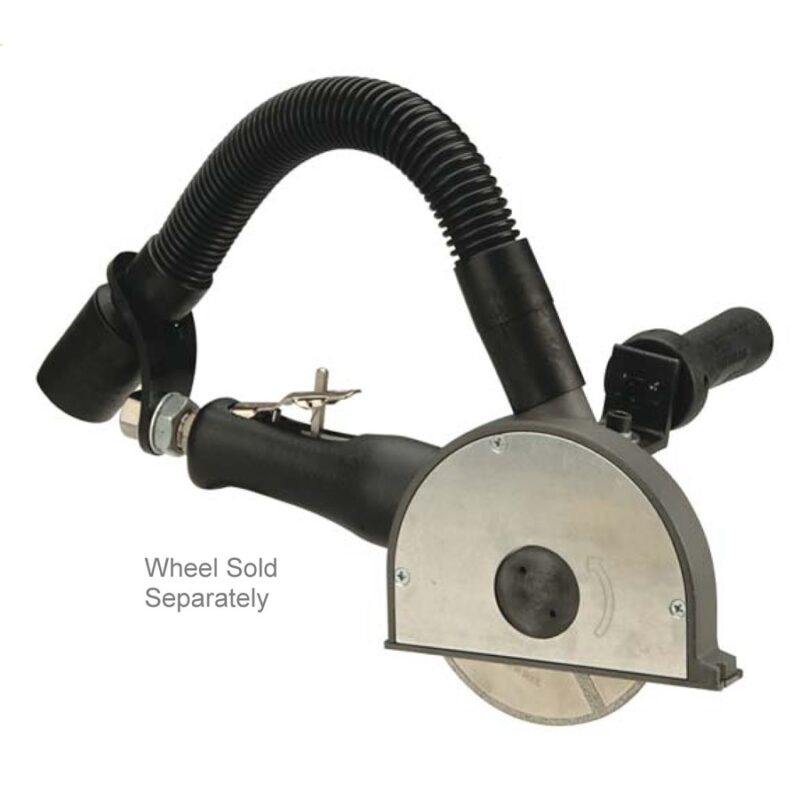

Product Description of Dynabrade 52615 5" (127mm) Dia. Right Angle Cut-Off Wheel Tool, Central Vacuum
• Tool accepts optional 5" (127 mm) dia. Diamond Cut-Off Wheels with 3/4" (19 mm) dia. center hole. Adjustable wheel guard has vacuum port 1-1/4" (32 mm) outside dia. that diverts airborne dust and debris to optional vacuum source. Excellent for efficient cutting with capture of dust and debris. Ideal for use on fiberglass and composites.
• Non-marring composite base is removable to utilize maximum blade depth of 1-3/16" (30 mm). Optional composite base is available for scoring. Shroud/Guide Plate design allows cutting as close as 1/8" (3 mm) to leading edge of work piece.
• Wick Lube System extends gear life with simple lubrication. Exhaust system rotates 360 degrees to ensure exhaust is always directed away from operator. Safety-lock throttle lever is included.
• Tool includes 95848 Gear Oil and 95541 Gear Oil Gun.
• More information here! D13.09
Parts Manuals for the Dynabrade 52615 5" (127mm) Dia. Right Angle Cut-Off Wheel Tool, Central Vacuum
Find the five digit number for your part(s) in the parts manual below, and click the link to open a new tab where you can add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.
Current Manual
Book a Dynabrade Repair
Vibration & Sound Readings for the Dynabrade 52615 5" (127mm) Dia. Right Angle Cut-Off Wheel Tool, Central Vacuum
Please note – The vibration readings provided for the Dynabrade 52615 5" (127mm) Dia. Right Angle Cut-Off Wheel Tool, Central Vacuum are based on laboratory results in very specific sets of conditions. Vibration levels are dependent on a number of factors that include, among many others; the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than real-world values measured in your own specific application.
| Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method |
| N/A | N/A | N/A |
| Sound Pressure (dBA) | Sound Power (dBA) |
| 84 | 95 |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 52615 5" (127mm) Dia. Right Angle Cut-Off Wheel Tool, Central Vacuum will be sent to your email automatically.
On-Site Tool Demonstrations of the Dynabrade 52615 5" (127mm) Dia. Right Angle Cut-Off Wheel Tool, Central Vacuum
Please complete the form below to arrange a tool demonstration for the Dynabrade 52615 5" (127mm) Dia. Right Angle Cut-Off Wheel Tool, Central Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.
