Air-Powered Orbital Finishing Sanders – Featheredge, Finish, Sand and Blend

Powerful .15 hp (112 W), 10,000 RPM air motor. Utilizes just 13 SCFM (368 L/Min) at 90 PSIG (6.2 Bar). Precise 3/32″ orbital motion is ideal for achieving a controlled, ultra-fine finish on a variety of surfaces. Compact size is ideal for all operators, including those with smaller hands.

View Full Description

Air-Powered Orbital Finishing Sanders – Featheredge, Finish, Sand and Blend

• Powerful .15 hp (112 W), 10,000 RPM air motor. Utilizes just 13
SCFM (368 L/Min) at 90 PSIG (6.2 Bar).
• Precise 3/32″ orbital motion is ideal for achieving a controlled, ultra-fine finish on a variety of surfaces.
• Compact size is ideal for all operators, including those with smaller hands.
• Engineered and tested to ensure less tool vibration than any competitive model!
• Lighter tool weight minimizes fatigue. Comfort Platform provides additional hand and wrist support. Perfect for vertical applications.
• Rectangular shape sands deep into corners, where round pads cannot reach.

Non-Vacuum

Model 58500
• Includes 56315 Hook-Face Sanding Pad, 74 mm wide x 109 mm long (approximately 3″ x 4-1/4″), for accepting optional Hook-Face abrasive sheets.
Model 58503
• Includes 56317 Hook-Face Sanding Pad, 80 mm wide x 130 mm long (approximately 3-1/4″ x 5″), for accepting optional Hook-Face abrasive sheets.
Model 58509
• Includes 56355 Vinyl-Face Sanding Pad, 74 mm wide x 109 mm long (approximately 3″ x 4-1/4″).

Model 58507 (with Heavy-Duty Clips)
• Tool has specially designed pad base assembly with heavy-duty clips. Clips are designed for heavy-duty use, accepting up to four sheets at once. Ideal for high-production workplaces.
• Includes 56354 vinyl-face Sanding Pad, 68 mm wide by 175 mm long (approximately 2-3/4″ x 7″). Weight-mated pad screws directly to pad base assembly.
• Accepts optional abrasive sheets cut from 70 mm (2-3/4″) wide abrasive rolls. Four sheets of this width may also be cut from sheets 229 mm wide x 280 mm long (9″ x 11″).

Dynabrade Dynabug II Orbital Sanders Image1{2}

Self-Generated Vacuum

• Self-Generated Vacuum models vacuum through the tool’s exhaust. Tool has 1″ outside diameter vacuum port, ready for connection to optional dust collection systems. Includes Hook-Face sanding pad, for optional Hook-Face vacuum abrasive sheets.

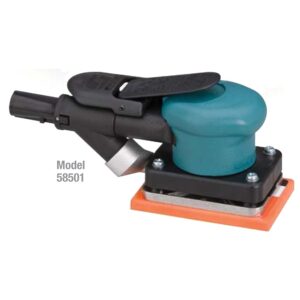

Model 58501
• Includes 56316 Vacuum Sanding Pad, 74 mm wide x 109 mm long (approximately 3″ x 4-1/4″).
Model 58504
• Includes 56319 Vacuum Sanding Pad, 80 mm wide x 130 mm long (approximately 3-1/4″ x 5″), with eight vacuum holes.
Dynabrade Dynabug II Orbital Sanders Image2

Central Vacuum

• Central Vacuum models have 1″ outside diameter vacuum port, ready for connection to external vacuum source. Includes Hook-Face sanding pad, for optional Hook-Face vacuum abrasive sheets.
Model 58502
• Includes 56316 Vacuum Sanding Pad, 74 mm wide by 109 mm long (approximately 3″ x 4-1/4″).

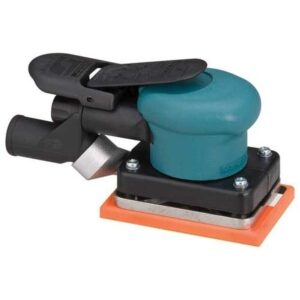

Model 58505
• Includes 56319 Vacuum Sanding Pad, 80 mm wide by 130 mm long (approximately 3-1/4″ x 5″), with eight vacuum holes.
Model 58506 “Delta Style”
• Includes 56323 “Delta Style” Vacuum Sanding Pad, 99 mm wide (at wider end) by 143 mm long (approximately 4″ x 5-3/4″), with seven vacuum holes. Unique pad has curved edges for sanding rounded areas, and pointed tip for reaching into tight corners.
Dynabrade Dynabug II Orbital Sanders Image3
Dynabrade Dynabug II Orbital Sanders Image Specs Table
