Dynabrade .4hp Right-Angle Die Grinders

For Use on Metal, Fiberglass, Carbon Fibre, Composites and More!

Features and Advantages

• Kevlar® phenolic vanes for longer life.
• Lightweight ergonomic design for greater comfort and control.
• One-piece spindle keeps all rotating components on the same centerline for reduced run-out, which means lower vibration levels for enhanced operator comfort.
• Front and rear exhaust models. Air passage to continually cool the gear box – gears last longer!
• Pinion piloted on rotor to reduce run-out.
• Needle bearing assures proper shaft alignment.
• Dual wick lubrication system – saturated with gear oil for extended gear life – over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears.
• Highest horsepower and torque levels of any similar competitive
product.

Benefits

• Increased performance from higher torque levels. You can really “work” these tools. Stall out torque is the highest in the marketplace.

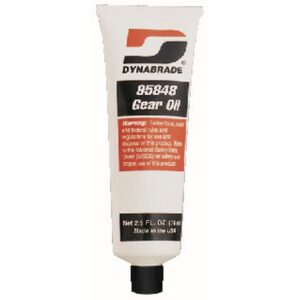

• We use Gear Oil as opposed to grease. Gear Oil is specially formulated to STICK TO METAL. Grease does not stick and the centrifugal force of the spinning gears throws the grease away from the metal surface.
• Longer gear life means reduced downtime and less costly repairs.• Front and rear exhaust models – user can decide which configuration is right for them. More choice means more control of their purchase.
• Insulated housings provide “warm tools” for the users and helps prevent worker’s injuries like “white finger”.
• Lower vibration levels help prevent worker injuries such as Carpal Tunnel Syndrome. Machines are easier to use because they do not “buzz” in your hands. Workers can use smooth running machines longer.
• Low profile machines are ideal for “hard-to-reach” areas. A performance plus!
• All machines are perfectly compatible with all Dynabrade Accessories.
Providing systemized solutions for our customers is a key to
Dynabrade’s success.

Front Exhaust Models

• Governor-controlled motor maintains speed under load.

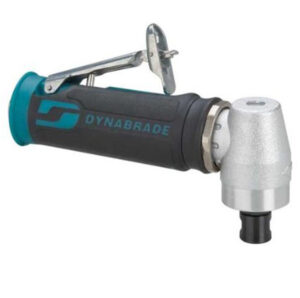

Model 47800 – 12,000 RPM, 1/4″ & 6 mm Collets
Model 47801 – 15,000 RPM, 1/4″ & 6 mm Collets
Model 47802 – 20,000 RPM, 1/4″ & 6 mm Collets

Rear Exhaust Models with Extended Muffler

• Governor-controlled motor maintains speed under load.

Model 46000 – 12,000 RPM, 1/4″ & 6 mm Collets
Model 46001 – 15,000 RPM, 1/4″ & 6 mm Collets

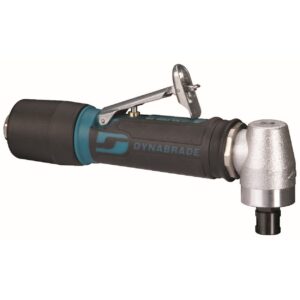

Model 46002 – 20,000 RPM, 1/4″ & 6 mm Collets

Rear Exhaust Models with Standard Muffler

• Governor-controlled motor maintains speed under load.

Model 49425 – 3,200 RPM, 1/4″ & 6 mm Collets

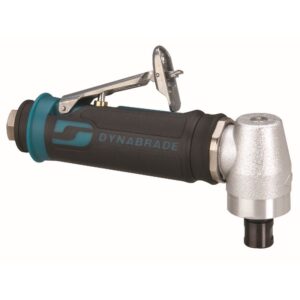

Model 48315 – 12,000 RPM, 1/4″ & 6 mm Collets

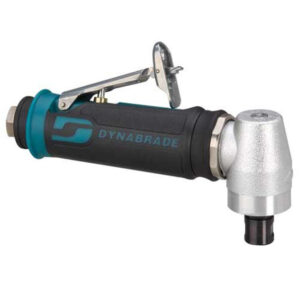

Model 48316 – 15,000 RPM, 1/4″ & 6 mm Collets
Model 48317 – 20,000 RPM, 1/4″ & 6 mm Collets

Dynabrade .4hp Die Grinder Image5
Dynabrade .4hp Die Grinder Image4

.4hp Die Grinders Specs Table2
