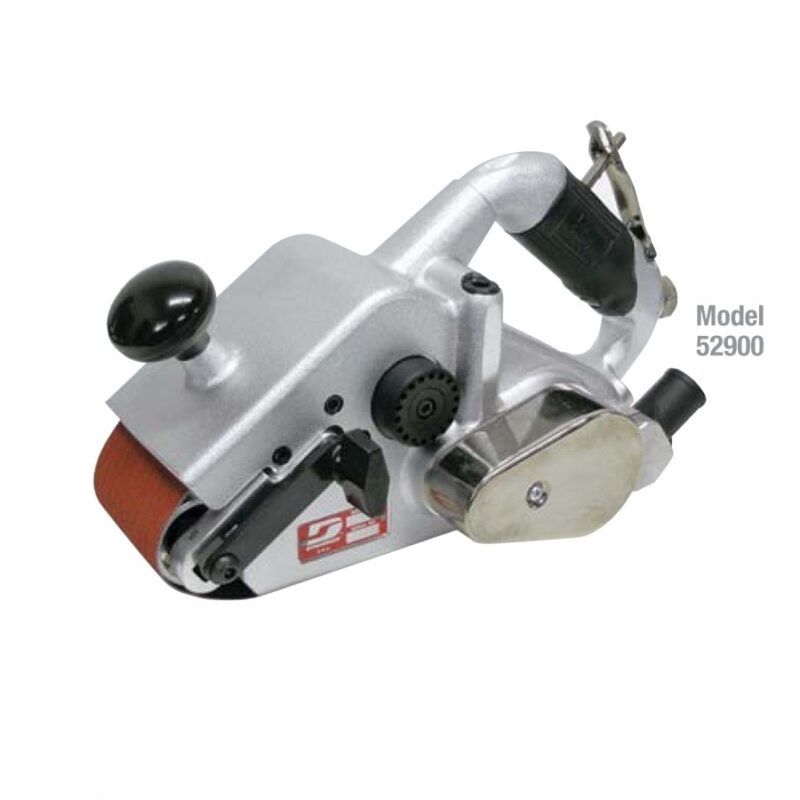

Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum

MRP: £4,047.00

£3,512.80 +VAT

1.3 hp, 3,500 RPM, Rotational Exhaust, for 3″ W x 24″ L (76 mm x 610 mm) Belts




Main Specifications:



Description

Product Description of the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum

• Ideal for surface leveling, graining and finishing. Heavy-duty 1.3 hp sander (3,500 RPM) powers 3" x 24" abrasive belts, for aggressive material removal on metal and wood.
• Toggle switch offers simple one-step belt tensioning. Pistol-grip handle and top control knob allow enhanced operator control.
• Easily adjustable tracking of abrasive belt. Tool works well with non-woven nylon belts.
• Safety-lock throttle lever is included.

The Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum is a Dynabrade tool within the Miscellaneous category of tooling range. Coated abrasives and surface conditioning material Belts of 75x610mm can be used which can also be supplied by DynaShop. A Central tool with a maximum RPM of 3500, a power rating (hp/W) of 1.3 (970) with a weight of 5.67kg.

df2-quick-changeMany Dynabrade abrasive belt tools include a swiveling belt guard to make changing belts quick and safe.

Tool Type

Model Number

52900

Vacuum Type

Max. RPM

Exhaust Type

Configuration

Power HP (W)

Consumable Shape

Consumable Size

Item Weight (kgs)

Packaged Weight (kgs)

Other Specifications

, , , , , , ,

Vibration Level (m/sec²)

Uncertainty

Vibration Method

Sound Pressure (dBA)

Sound Power (dBA)

Accessories for the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum

Consumables for the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum

  • 75x610mm Surface Conditioning Belts

    75x610mm Surface Conditioning BeltsSelect options £35.55£148.77 +VAT

  • 75x610mm Zirconia/Aluminium Oxide Belts, Grits 40-400

    75x610mm Zirconia/Aluminium Oxide Belts, Grits 40-400Select options £38.71£47.41 +VAT

  • Norton R976 Red-X Ceramic Belts 75x610mm, Grits 36 – 120, 8/Pack

    Norton R976 Red-X Ceramic Belts 75x610mm, Grits 36 - 120, 8/PackSelect options £33.32£34.80 +VAT

  • Sia 2503 Siabite Ceramic Belts 75x610mm, Grits 36 – 120, 8/Pack

    Sia 2503 Siabite Ceramic Belts 75x610mm, Grits 36 - 120, 8/PackSelect options £32.65£34.10 +VAT

On-Site Tool Demonstrations and Video of Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum

Free On-Site UK Tool Demonstrations

Please complete the form below to arrange a tool demonstration for the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum or any of the Dynabrade range of tooling.  Alternatively please call us on 01273 468736.

Book a Tool Demonstration

Vibration Readings for the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum

Vibration readings for the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

 Vibration Level EN1296 (m/sec²)Uncertainty EN1296 (m/sec²)Vibration Test Method
Current (3 Axis)Under 2.50.6ISO 20643
Previous (Dominant Axis)Under 2.50.2S1049

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum will be sent to your email automatically.

You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).

Health and Safety Executive: Hand-Arm Vibration Guide

Please Note:

Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

Sound and Decibel Readings of the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum

Sound Pressure (dBA)Sound Power (dBA)
8596

The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum will be sent to your email automatically.

Similar Tools to the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum

Parts Manuals for the Dynabrade 52900 Take-About Sander Abrasive Belt Tool , Central Vacuum

Dynabrade 52900 Take-About Sander Abrasive Belt Tool’ Central Vacuum – 1.3 hp’ 3’500 RPM’ Rotational Exhaust’ for 3″ W x 24″ L 76 mm x 610 mm Belts Dynabrade Manual

View the Dynabrade 52900



Find the FIVE digit number for your part and enter it below with your desired quantity. You can add more parts by adding new rows – add all items to your cart in one go by clicking ‘Add to Cart’.

ProductQuantityPrice
Total Price:

Posted in Dynabrade Parts Manuals | Comments Off on Dynabrade 52900 Take-About Sander Abrasive Belt Tool’ Central Vacuum – 1.3 hp’ 3’500 RPM’ Rotational Exhaust’ for 3″ W x 24″ L 76 mm x 610 mm Belts Dynabrade Manual
