Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum

MRP: £1,218.00

£1,057.22 +VAT

.7 hp (522 W) 3,400 RPM, Rear Exhaust, 1/2″ to 1-1/2″ x 30″ (13 mm to 38 mm x 762 mm) Belts




Main Specifications:



Description

Product Description of the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum

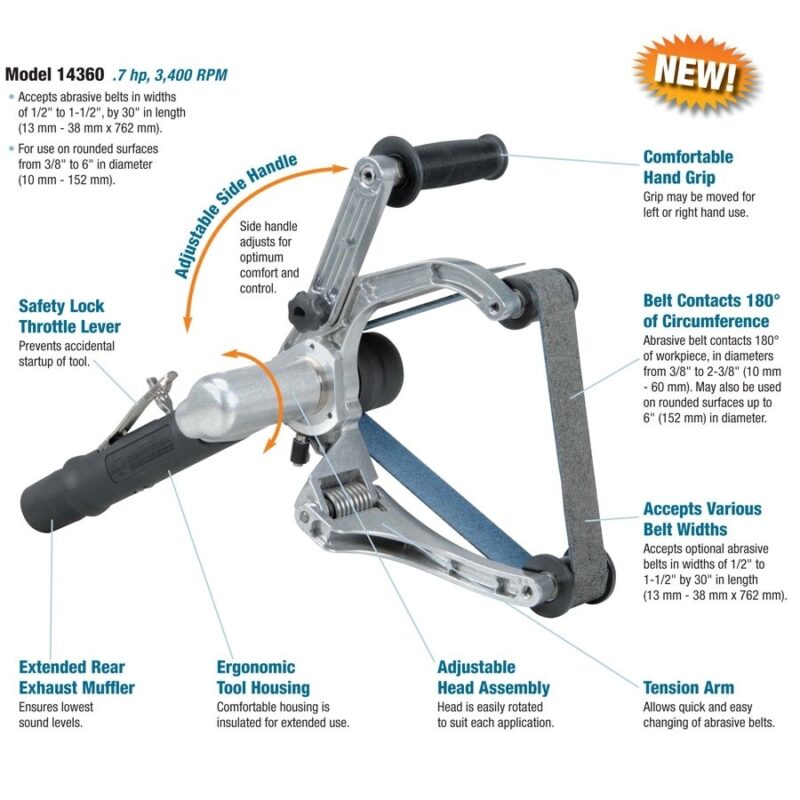

• Air-powered Pipe Belt Finisher achieves top-quality finishes on rounded surfaces in record time! Sand, blend, surface condition, polish and finish on metals such as stainless steel and aluminum. An essential tool for metal and railing fabrication, plus pharmaceutical equipment, food industries and more!
• Accepts abrasive belts in widths of 1/2" to 1-1/2", by 30" in length (13 mm to 38 mm x 762 mm). For use on rounded surfaces from 3/8" to 6" in diameter (10 mm - 152 mm).
• Safety-lock throttle lever prevents accidental start-up of tool. Side-handle adjusts for optimum comfort and control. Comfortable grip may be moved for left or right hand use.
• Extended rear exhaust muffler ensures the lowest sound levels. Ergonomic tool grip is insulated for extended use. Adjustable head-assembly is easily rotated to suit each application. Tension-arm allows quick and easy changing of abrasive belts.
• Abrasive belt contacts 180 degrees of workpiece circumference, for diameters from 3/8" to 2-3/8" (10 mm to 60 mm). May also be used on rounded surfaces a large as 6" (152 mm) in diameter.

The Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum is a Dynabrade tool within the Miscellaneous category of tooling range. Coated abrasives and surface conditioning material Belts of 13x762mm, 16x762mm, 19x762mm, 25x762mm, 38x762mm can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 3400, a power rating (hp/W) of 0.7 (522) with a weight of kg.

df2-quick-changeMany Dynabrade abrasive belt tools include a swiveling belt guard to make changing belts quick and safe.

Tool Type

Model Number

14360

Vacuum Type

Max. RPM

Exhaust Type

Configuration

Power HP (W)

Consumable Shape

Consumable Size

, , , ,

Packaged Weight (kgs)

Other Specifications

, , , , , ,

Vibration Level (m/sec²)

Uncertainty

Vibration Method

Sound Pressure (dBA)

Sound Power (dBA)

Accessories for the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum

Consumables for the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum

On-Site Tool Demonstrations and Video of Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum

Free On-Site UK Tool Demonstrations

Please complete the form below to arrange a tool demonstration for the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum or any of the Dynabrade range of tooling.  Alternatively please call us on 01273 468736.

Book a Tool Demonstration

Vibration Readings for the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum

Vibration readings for the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

 Vibration Level EN1296 (m/sec²)Uncertainty EN1296 (m/sec²)Vibration Test Method
Current (3 Axis)Under 2.50.6ISO 20643
Previous (Dominant Axis)N/AN/AN/A

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum will be sent to your email automatically.

You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).

Health and Safety Executive: Hand-Arm Vibration Guide

Please Note:

Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

Sound and Decibel Readings of the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum

Sound Pressure (dBA)Sound Power (dBA)
8293

The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum will be sent to your email automatically.

Similar Tools to the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum

Parts Manuals for the Dynabrade 14360 Pneumatic Pipe Belt Finisher, Non-Vacuum

Dynabrade 14360 Dynabrade Air-Powered Pipe Belt Finisher Manual and parts

View the Dynabrade 14360



Find the FIVE digit number for your part and enter it below with your desired quantity. You can add more parts by adding new rows – add all items to your cart in one go by clicking ‘Add to Cart’.

ProductQuantityPrice
Total Price:
