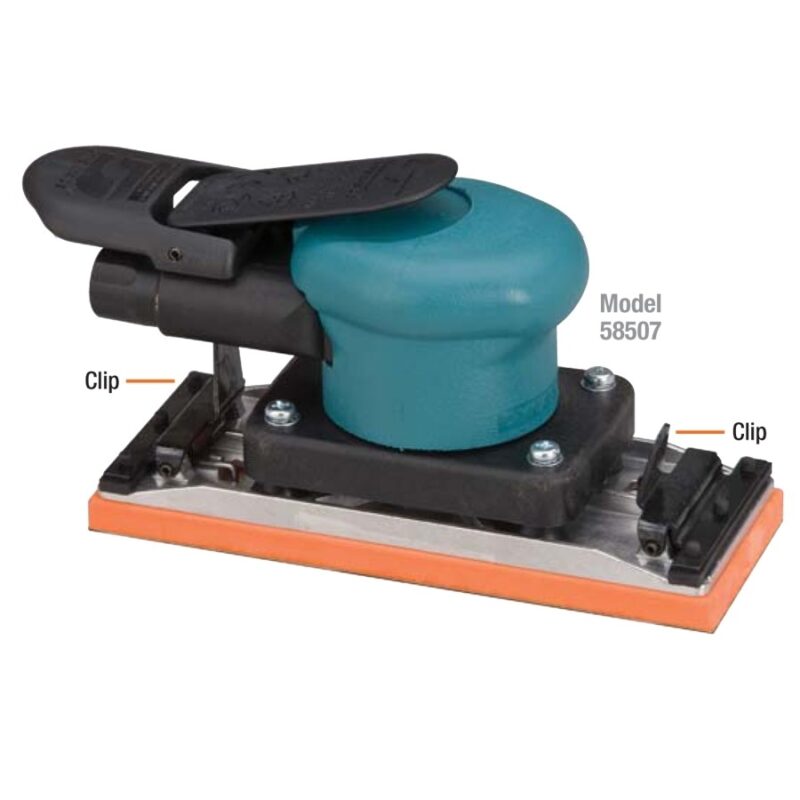

Dynabrade 58507 2-3/4″ (70mm) W x 7″ (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum

MRP: £322.50

£293.23 +VAT

Dynabrade 58507 2-3/4″ (70mm) W x 7″ (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum

Description

Product Description of Dynabrade 58507 2-3/4" (70mm) W x 7" (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum

• Powerful .15 hp (112 W), 10,000 RPM air motor gets the job done in countless applications, utilizing just 13 SCFM (368 LPM) at 90 PSI (6.2 Bar). Precise 3/32" orbital motion is ideal for achieving a controlled, ultra-fine finish on a variety of surfaces.
• Compact size is ideal for all operators, including those with smaller hands. Engineered and tested to ensure less tool vibration than an competitive model! Lighter tool weight minimizes hand and arm fatigue. Perfect for vertical applications.
• Rectangular shape sands deep into corners, where round pads cannot reach.
• Tool has specially designed pad base assembly with heavy-duty clips, for attaching optional abrasive sheets. Clips are designed for heavy-duty use. Ideal for highproduction workplaces.
• Includes 56354 vinyl-face Sanding Pad, 68 mm wide x 175 mm long (approximately 2-3/4" x 7"). Weight-mated pad screws directly to pad base assembly. Accepts abrasive sheets cut from 70 mm (2-3/4") wide abrasive rolls. Four sheets of this width may also be cut from sheets 229 mm wide x 280 mm long (9" x 11"). Abrasives are sold separately. Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!

cut-400250The Dynabrade 58507 2-3/4" (70mm) W x 7" (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum has a Refined Ergonomic Tool Grip that allows for a more comfortable grip and feel, reducing operator fatigue and increasing efficiency. Perfectly-balanced, weight-mated sanding pad with exclusive single-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration. To read our guide on choosing the correct Dynorbital please click here.



Parts Manuals for the Dynabrade 58507 2-3/4" (70mm) W x 7" (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum

Find the five digit number for your part(s) in the parts manual below, and enter it in the search box at the top of the page to add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.

Current Manual

Tune-Up Kit

Book a Dynabrade Repair

If you would like to book a repair for the Dynabrade 58507 2-3/4" (70mm) W x 7" (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum please use the form below. You will then receive an email - simply place a copy of this email in the box with your tool and send it to the address stated in the email.

Vibration & Sound Readings for the Dynabrade 58507 2-3/4" (70mm) W x 7" (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum

Vibration readings for the Dynabrade 58507 2-3/4" (70mm) W x 7" (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

Vibration Level EN1296 (m/sec²)Uncertainty EN1296 (m/sec²)Vibration Test Method
Under 2.50.8ISO 8662-8

Sound Pressure (dBA)Sound Power (dBA)
7687

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 58507 2-3/4" (70mm) W x 7" (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum will be sent to your email automatically.

On-Site Tool Demonstrations of the Dynabrade 58507 2-3/4" (70mm) W x 7" (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum

Please complete the form below to arrange a tool demonstration for the Dynabrade 58507 2-3/4" (70mm) W x 7" (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.

Book a Tool Demonstration

    For our privacy policy please click here.

Video of the Dynabrade 58507 2-3/4" (70mm) W x 7" (178mm) L Dynabug II Orbital Sander, with Clips, Non-Vacuum

Additional information

Tool Type

Model Number

58507

Air Inlet Thread

1/4" NPT

Vacuum Type

Max. RPM

Exhaust Type

Power HP (W)

Consumable Shape

Consumable Size

Orbit Diameter

Pad Fixing Type

,

Item Weight (kgs)

Packaged Weight (kgs)

Other Specifications

, , , , , ,

Vibration Level (m/sec²)

Uncertainty

Vibration Method

Sound Pressure (dBA)

Sound Power (dBA)
