Description

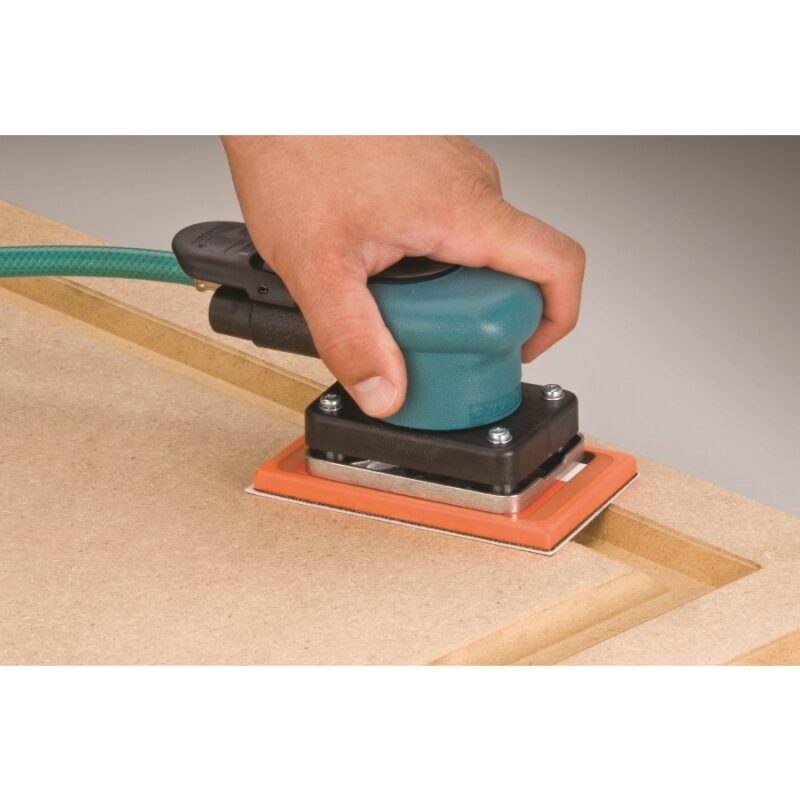

Product Description of Dynabrade 58503 3-1/4" W x 5" L (82mm x 127mm) Dynabug II Orbital Sander, Non-Vacuum
• Powerful .15 hp (112 W), 10,000 RPM air motor gets the job done in countless applications, utilizing just 13 SCFM (368LPM) at 90 PSI (6.2 Bar).
• Precise 3/32" orbital motion is ideal for achieving a controlled, ultra-fine finish on a variety of surfaces. Compact size is ideal for all operators, including those with smaller hands.
• Engineered and tested to ensure less tool vibration than any competitive model! Lighter tool weight minimizes hand and arm fatigue. Perfect for vertical applications.
• Rectangular shape sands deep into corners, where round pads cannot reach.
• Includes 56317 Hook-Face Sanding Pad, 80 mm wide x 130 mm long (approximately 3-1/4" x 5"). Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!
The Dynabrade 58503 3-1/4" W x 5" L (82mm x 127mm) Dynabug II Orbital Sander, Non-Vacuum has a Refined Ergonomic Tool Grip that allows for a more comfortable grip and feel, reducing operator fatigue and increasing efficiency. Perfectly-balanced, weight-mated sanding pad with exclusive single-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration. To read our guide on choosing the correct Dynorbital please click here.
Parts Manuals for the Dynabrade 58503 3-1/4" W x 5" L (82mm x 127mm) Dynabug II Orbital Sander, Non-Vacuum
Find the five digit number for your part(s) in the parts manual below, and click the link to open a new tab where you can add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.
Current Manual
Tune-Up Kit
Book a Dynabrade Repair
Vibration & Sound Readings for the Dynabrade 58503 3-1/4" W x 5" L (82mm x 127mm) Dynabug II Orbital Sander, Non-Vacuum
Please note – The vibration readings provided for the Dynabrade 58503 3-1/4" W x 5" L (82mm x 127mm) Dynabug II Orbital Sander, Non-Vacuum are based on laboratory results in very specific sets of conditions. Vibration levels are dependent on a number of factors that include, among many others; the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than real-world values measured in your own specific application.
Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method |
Under 2.5 | 0.8 | ISO 8662-8 |
Sound Pressure (dBA) | Sound Power (dBA) |
77 | 88 |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 58503 3-1/4" W x 5" L (82mm x 127mm) Dynabug II Orbital Sander, Non-Vacuum will be sent to your email automatically.
On-Site Tool Demonstrations of the Dynabrade 58503 3-1/4" W x 5" L (82mm x 127mm) Dynabug II Orbital Sander, Non-Vacuum
Please complete the form below to arrange a tool demonstration for the Dynabrade 58503 3-1/4" W x 5" L (82mm x 127mm) Dynabug II Orbital Sander, Non-Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.
