Description

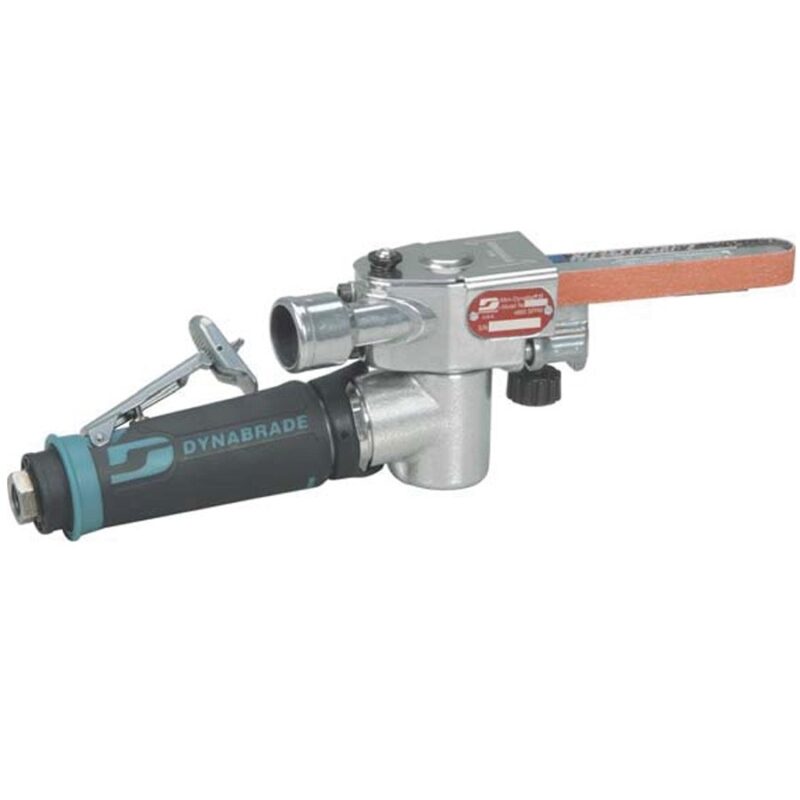

Product Description of the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum
| Model | Overall Length Inch (mm) | HP | RPM | Exhaust | Sound (ISO 15744) | Weight |
| 15002 | 11.6" (294mm) | 0.4 | 25000 | Rear | 83 dB(A) | 1.6 lbs. (0.74kg) |
- NEW versatility for Mini-Dynafile I family of products!
- Includes standard features of the new .4 hp motor design
- Use P/N 95894 or 96006 Vacuum Hose Cuff to attach, sold separately
- Ready for connection to optional portable self-contained dust collection system, or exteral vacuum system
Design Advantages
- 1" (25 mm) O.D. Vacuum port
- Accepts all Mini-Dynafile I accessories
- Powerful .4 hp motor
Designed for
- Composites
- Aerospace
- General purpose
Belt Size
- Width 1/8" (3 mm) â 1/2" (13 mm)
- Length 12" (305 mm)
What's in the box
- Complete tool (Includes 15026 Contact Arm)
- Sample belts
- 3 mm Hex Key (P/N 95266)
- Collateral technical / s
The Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum is a Dynabrade tool within the Mini-Dynafile II category of tooling range. Coated abrasives and surface conditioning material Belts of 13x305mm, 3x305mm, 6x305mm can be used which can also be supplied by DynaShop. A Central tool with a maximum RPM of 25000, a power rating (hp/W) of 0.4 (298) with a weight of kg.
Many Dynabrade abrasive belt tools include a swiveling belt guard to make changing belts quick and safe.
| Tool Type | |
|---|---|
| Model Number | 15002 |
| Vacuum Type | |
| Max. RPM | |
| Power HP (W) | |
| Consumable Shape | |
| Consumable Size | |
| Other Specifications | Max. Air Flow/Range @ 90 PSIG (6.2 Bar) SCFM (L/Min.): 21 (595) |
| Vibration Level (m/sec²) | |
| Uncertainty | |
| Vibration Method | |
| Sound Pressure (dBA) | |
| Sound Power (dBA) |
Contact Arms for the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum
Contact arms are able to extend the capabilities of your Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum as each arm is capable of carrying out a variety of different tasks. Contact arms can make difficult to reach areas easier to access and can also be used for specific purposes such as corner weld removal, strap polishing on tubes, seam removal on pipes or deburring edges. A number of contact arms also have platen pads for flat filing, which can be purchased and replaced when worn.
-
Dynabrade 15025 Contact Arm Ass’y, 3/8″ Dia. x 1″ W, 40 Duro
Add to basket £50.85 +VAT -
Dynabrade 15026 Contact Arm Ass’y, 5/8″ Dia. x 3/8″ W, Rubber Wheel, with 1/2″ (13 mm) W Platen
Add to basket £45.87 +VAT -
Dynabrade 15027 Contact Arm Ass’y, 5/8″ Dia. x 1/8″ W, Rubber Wheel, with 1/4″ (6 mm) W Platen
Add to basket £71.08 +VAT -
Dynabrade 15028 Contact Arm Ass’y, 1″ Dia. x 3/8″ W, Rubber Wheel, No Platen/Offset Design
Add to basket £45.87 +VAT -
Dynabrade 15029 Contact Arm Ass’y, 1″ Dia. x 3/8″ W, Tapered Rubber Wheel, No Platen/Offset Design
Add to basket £63.06 +VAT -
Dynabrade 15030 Contact Arm Ass’y, 5/16″ Dia. x 3/8″ W, Steel Wheel, with 1/2″ (13 mm) W Platen
Add to basket £53.43 +VAT -
Dynabrade 15031 Contact Arm Ass’y, 7/16″ Dia. x 3/8″ W, Steel Wheel, with 1/2″ (13 mm) W Platen
Add to basket £85.99 +VAT -
Dynabrade 15032 Contact Arm Ass’y, 1/4″ Dia. x 3/8″ W, Crowned Steel Wheel, Run at 45 PSI Maximum
Add to basket £120.38 +VAT -
Dynabrade 15033 Contact Arm Ass’y, 5/16″ Dia. x 3/8″ W, 50 Duro Wheel, Run at 45 PSI Maximum
Add to basket £123.82 +VAT
Accessories for the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum
-
Dynabrade 94300 1/4″ NPT Composite Dynaswivel
Add to basket £19.54 +VAT
Consumables for the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum
-
13x305mm Surface Conditioning Belts
Select options £15.80 – £21.58 +VAT -
13x305mm Zirconia/Aluminium Oxide Belts, Grits 40-400
Select options £15.90 – £41.06 +VAT -
3x305mm Zirconia/Aluminium Oxide Belts, Grits 40-400
Select options £14.40 – £16.50 +VAT -
6x305mm Surface Conditioning Belts
Select options £13.20 – £21.21 +VAT -
6x305mm Zirconia/Aluminium Oxide Belts, Grits 40-400
Select options £14.40 – £24.86 +VAT -
Norton R976 Red-X Ceramic Belts 13x305mm, Grits 36 – 120, 92/Pack
Select options £41.40 – £43.24 +VAT -
Norton R976 Red-X Ceramic Belts 3x305mm, Grits 36 – 120, 100/Pack
Select options £23.72 – £24.78 +VAT -
Norton R976 Red-X Ceramic Belts 6x305mm, Grits 36 – 120, 100/Pack
Select options £21.06 – £22.00 +VAT -
Sia 2503 Siabite Ceramic Belts 13x305mm, Grits 36 – 120, 92/Pack
Select options £40.57 – £42.38 +VAT -
Sia 2503 Siabite Ceramic Belts 3x305mm, Grits 36 – 80, 100/Pack
Select options £23.25 – £24.28 +VAT
On-Site Tool Demonstrations and Video of Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum
Free On-Site UK Tool Demonstrations
Please complete the form below to arrange a tool demonstration for the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.Book a Tool Demonstration
Vibration Readings for the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum
Vibration readings for the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.
| Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method | |
| Current (3 Axis) | Under 2.5 | 0.6 | ISO 20643 |
| Previous (Dominant Axis) | N/A | N/A | N/A |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum will be sent to your email automatically.
You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).
Health and Safety Executive: Hand-Arm Vibration Guide
Please Note:
Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.Sound and Decibel Readings of the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum
| Sound Pressure (dBA) | Sound Power (dBA) |
| 83 | 94 |
The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum will be sent to your email automatically.
Similar Tools to the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum
-
Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum
Add to basket £591.98 +VAT MRP: £682.00 -
Dynabrade 15003 Mini-Dynafile II Abrasive Belt Tool, Non-Vacuum
Add to basket £488.86 +VAT MRP: £563.20 -
Dynabrade 15006 Mini-Dynafile II Abrasive Belt Tool Versatility Kit, Non-Vacuum
Add to basket £527.82 +VAT MRP: £608.08 -
Dynabrade 15013 Mini-Dynafile II Abrasive Belt Tool for 13″ (330 mm) Belts, Non-Vacuum
Add to basket £488.86 +VAT MRP: £563.20
Parts Manuals for the Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum
Dynabrade 15002 Mini-Dynafile II, .4 HP, 25,000 RPM, Rear-Exhaust, Central Vacuum Manual
