Description

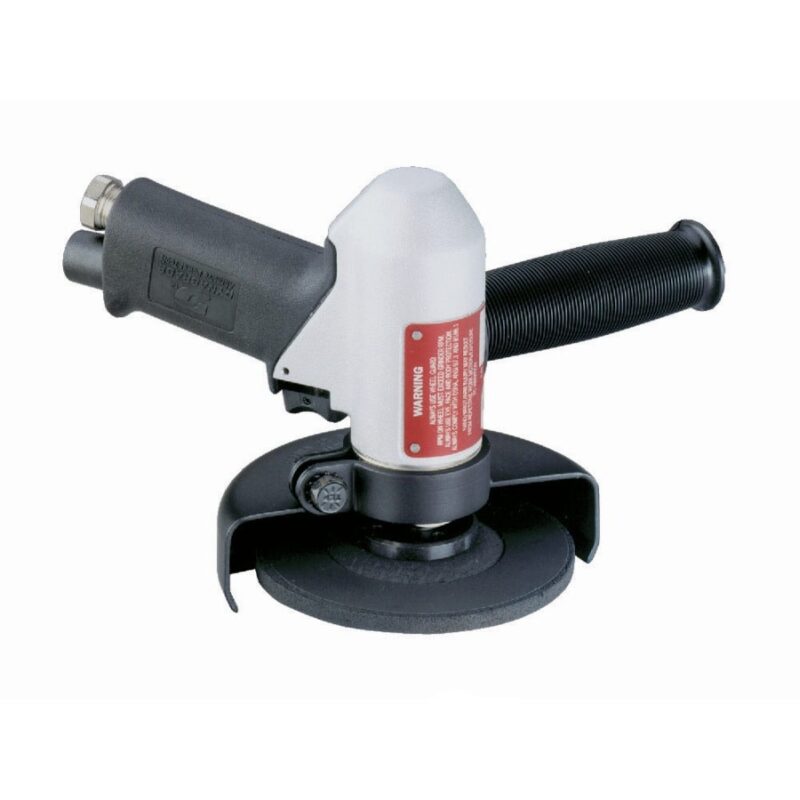

Product Description of Dynabrade 50340 4-1/2"-5" (114mm-127mm) Dia. Pistol Grip Depressed Center Wheel Grinder
• Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.
• 4-1/2" - 5" Diameter, Pistol Grip, .7 hp, Rear Exhaust, 11,000 RPM.
• Accepts optional Type 27 Depressed Center Wheel in diameters of 4-1/2" and 5", with 7/8" center hole. (Wheel width of 1/8" to 1/4".)
• Governor controlled motor to maintain RPM under heavy load. Gearless design for reduced maintenance and downtime.
• Removable side handle, guard and wheel flange set included.
The Dynabrade 50340 4-1/2"-5" (114mm-127mm) Dia. Pistol Grip Depressed Center Wheel Grinder is a Dynabrade tool within the Grinder category of tooling range. Depressed Center Wheels of 114mm, 127mm can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 11000, a power rating (hp/W) of 0.7 (522) with a weight of 1.77kg.
Parts Manuals for the Dynabrade 50340 4-1/2"-5" (114mm-127mm) Dia. Pistol Grip Depressed Center Wheel Grinder
Find the five digit number for your part(s) in the parts manual below, and click the link to open a new tab where you can add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.
Current Manual
Tune-Up Kit
Book a Dynabrade Repair
Vibration & Sound Readings for the Dynabrade 50340 4-1/2"-5" (114mm-127mm) Dia. Pistol Grip Depressed Center Wheel Grinder
Please note – The vibration readings provided for the Dynabrade 50340 4-1/2"-5" (114mm-127mm) Dia. Pistol Grip Depressed Center Wheel Grinder are based on laboratory results in very specific sets of conditions. Vibration levels are dependent on a number of factors that include, among many others; the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than real-world values measured in your own specific application.
| Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method |
| 3.2 | 1.6 | S1056 |
| Sound Pressure (dBA) | Sound Power (dBA) |
| 71 | 82 |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 50340 4-1/2"-5" (114mm-127mm) Dia. Pistol Grip Depressed Center Wheel Grinder will be sent to your email automatically.
On-Site Tool Demonstrations of the Dynabrade 50340 4-1/2"-5" (114mm-127mm) Dia. Pistol Grip Depressed Center Wheel Grinder
Please complete the form below to arrange a tool demonstration for the Dynabrade 50340 4-1/2"-5" (114mm-127mm) Dia. Pistol Grip Depressed Center Wheel Grinder or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.
