Description

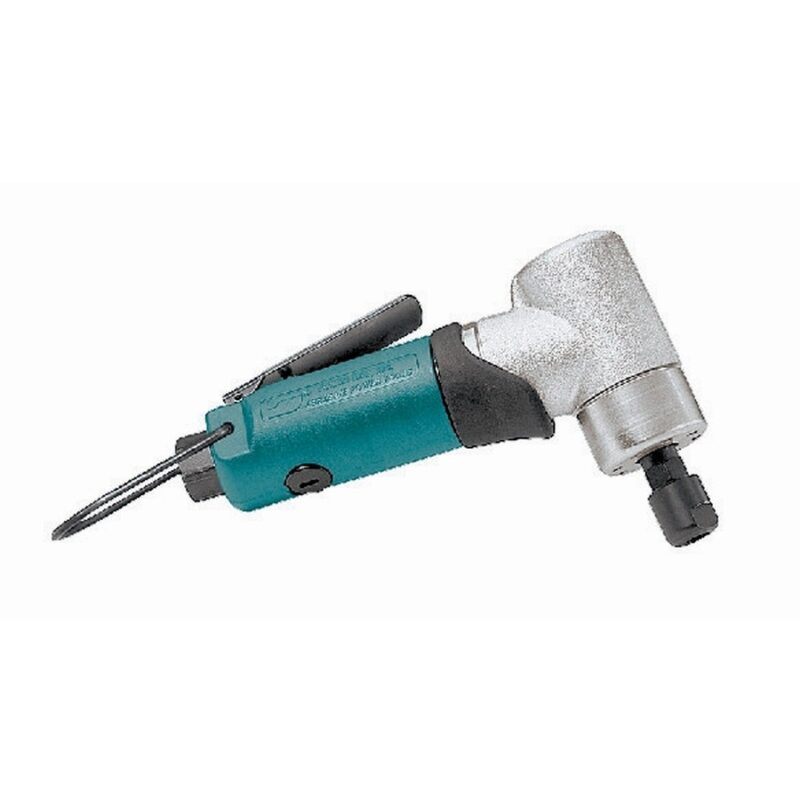

Product Description of Dynabrade 52204 .4 HP 7 Degree Offset Die Grinder
• Includes 1/4" Collet Insert (01485), fits optional 1/8" (01495), 3 mm (01496), 6 mm (01497)
• Kevlar phenolic vanes for longer life. Lightweight ergonomic design for greater comfort and control.
• Gearless design for reduced maintenance and downtime. Handle is offset 7 Degree for enhanced operator comfort.
The Dynabrade 52204 .4 HP 7 Degree Offset Die Grinder is a Dynabrade tool within the Die Grinder category of tooling range. Spindles of can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 3200, a power rating (hp/W) of 0.4 (298) with a weight of 0.6kg.
Parts Manuals for the Dynabrade 52204 .4 HP 7 Degree Offset Die Grinder
Find the five digit number for your part(s) in the parts manual below, and click the link to open a new tab where you can add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.
Current Manual
Tune-Up Kit
Book a Dynabrade Repair
Vibration & Sound Readings for the Dynabrade 52204 .4 HP 7 Degree Offset Die Grinder
Please note – The vibration readings provided for the Dynabrade 52204 .4 HP 7 Degree Offset Die Grinder are based on laboratory results in very specific sets of conditions. Vibration levels are dependent on a number of factors that include, among many others; the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than real-world values measured in your own specific application.
| Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method |
| Under 2.5 | 1.2 | ISO 8662-13 |
| Sound Pressure (dBA) | Sound Power (dBA) |
| 70 | 81 |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 52204 .4 HP 7 Degree Offset Die Grinder will be sent to your email automatically.
On-Site Tool Demonstrations of the Dynabrade 52204 .4 HP 7 Degree Offset Die Grinder
Please complete the form below to arrange a tool demonstration for the Dynabrade 52204 .4 HP 7 Degree Offset Die Grinder or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.
