Description

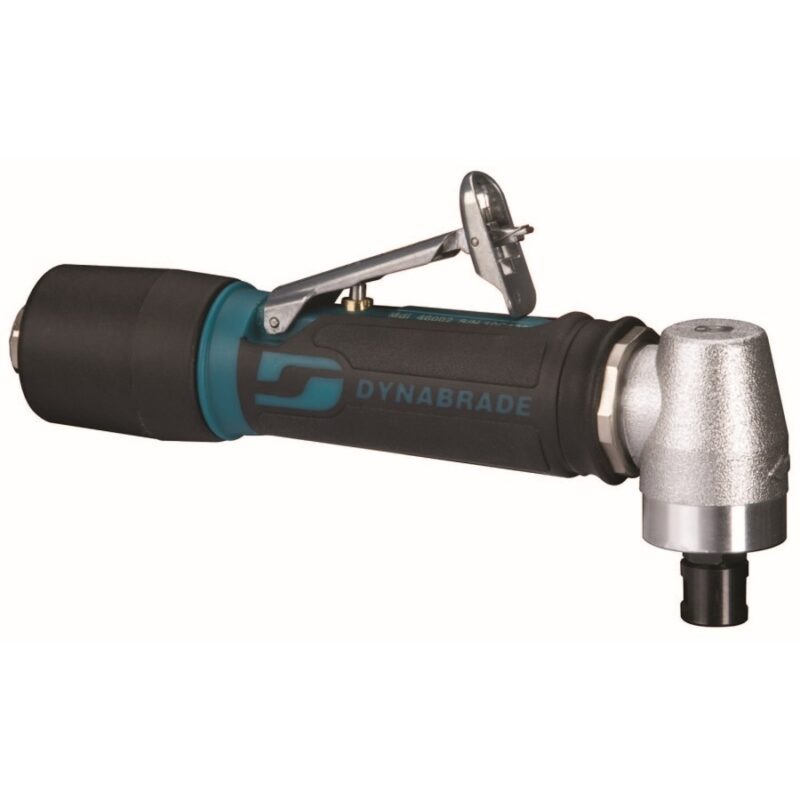

Product Description of Dynabrade 46001 .4 HP Right Angle Die Grinder
• Kevlar phenolic vanes for longer life. Lightweight ergonomic design for greater comfort and control. One-piece spindle keeps all rotating components on the same centerline for reduced run-out, which means lower vibration levels for enhanced operator comfort.
• All models have air passage to continually cool the gear box; gears last longer! Pinion piloted on rotor to reduce run-out. Needle bearing assures proper shaft alignment.
• Dual wick lubrication system saturated with gear oil for extended gear life over 700 hours. This helps administer the right amount and keep the gear oil on the metal gears. Highest horsepower and torque levels of any similar competitive product.
• Governor-controlled motor maintains speed under load. Includes both 1/4" & 6mm collet inserts.
The Dynabrade 46001 .4 HP Right Angle Die Grinder is a Dynabrade tool within the Die Grinder category of tooling range. Spindles of can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 15000, a power rating (hp/W) of 0.4 (298) with a weight of 0.54kg.
Parts Manuals for the Dynabrade 46001 .4 HP Right Angle Die Grinder
Find the five digit number for your part(s) in the parts manual below, and click the link to open a new tab where you can add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.
Current Manual
Tune-Up Kit
Book a Dynabrade Repair
Vibration & Sound Readings for the Dynabrade 46001 .4 HP Right Angle Die Grinder
Please note – The vibration readings provided for the Dynabrade 46001 .4 HP Right Angle Die Grinder are based on laboratory results in very specific sets of conditions. Vibration levels are dependent on a number of factors that include, among many others; the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than real-world values measured in your own specific application.
| Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method |
| N/A | N/A | ISO 8662-13 |
| Sound Pressure (dBA) | Sound Power (dBA) |
| 75 | 86 |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 46001 .4 HP Right Angle Die Grinder will be sent to your email automatically.
On-Site Tool Demonstrations of the Dynabrade 46001 .4 HP Right Angle Die Grinder
Please complete the form below to arrange a tool demonstration for the Dynabrade 46001 .4 HP Right Angle Die Grinder or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.
