Description

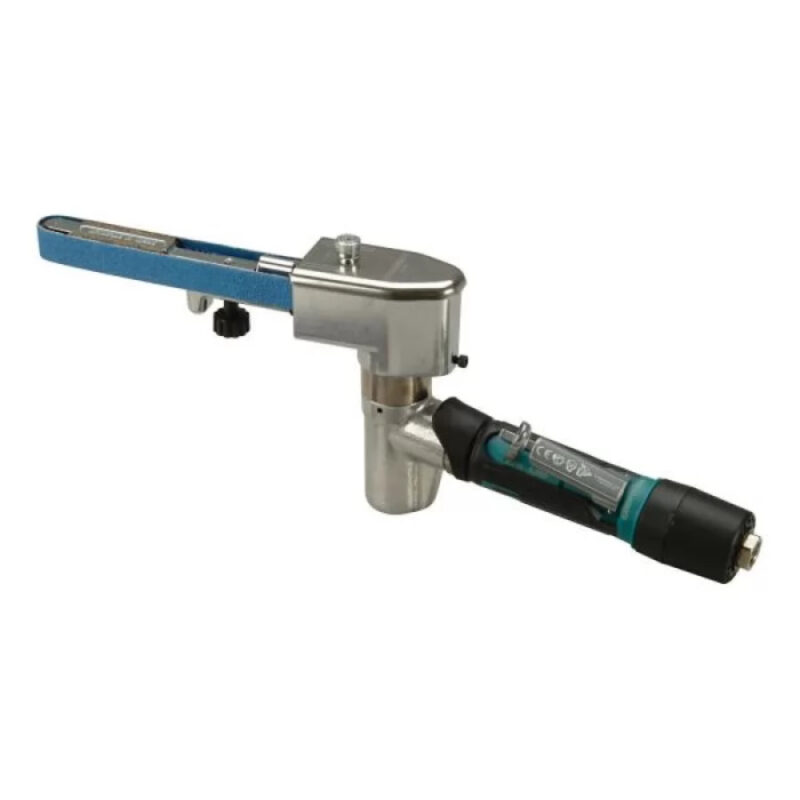

Product Description of the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum
• 1,500 SFPM. Slow speed ensures longer belt life when working on titanium and other exotic materials.
• Includes 11206 Contact Arm for 3/4" wide x 18" long belts.
The Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum is a Dynabrade tool within the Dynafile II category of tooling range. Coated abrasives and surface conditioning material Belts of 16x457mm, 16x521mm, 19x457mm, 19x521mm can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 5000, a power rating (hp/W) of 0.4 (298) with a weight of 1.29kg.
Many Dynabrade abrasive belt tools include a swiveling belt guard to make changing belts quick and safe.
Tool Type | |
---|---|
Model Number | 40381 |
Vacuum Type | |
Max. RPM | |
Exhaust Type | |
Configuration | |
Power HP (W) | |
Consumable Shape | |
Consumable Size | |
Item Weight (kgs) | |
Packaged Weight (kgs) | |
Other Specifications | Air Inlet Thread: 1/4" NPT, Height Inches (mm): 5-3/4" (146), Hose Internal Diameter Inches (mm): 3/8" (10), Item Weight: 1.29 kg, Length Inches (mm): 15-1/2" (394), Max. Air Flow/Range @ 90 PSIG (6.2 Bar) SCFM (L/Min.): 24 (680), Max. SFPM (SM/Min.): 1,500 (457), Packaged Weight: 1.66 kg |
Vibration Level (m/sec²) | |
Uncertainty | |
Vibration Method | |
Sound Pressure (dBA) | |
Sound Power (dBA) |
Contact Arms for the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum
Contact arms are able to extend the capabilities of your Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum as each arm is capable of carrying out a variety of different tasks. Contact arms can make difficult to reach areas easier to access and can also be used for specific purposes such as corner weld removal, strap polishing on tubes, seam removal on pipes or deburring edges. A number of contact arms also have platen pads for flat filing, which can be purchased and replaced when worn.
-
Dynabrade 11200 Contact Arm Ass’y, 5/8″ Dia. x 3/8″ W, Rubber Wheel, Platen Between 2 Contact Wheels
Add to basket £183.06 +VAT
-
Dynabrade 11201 Contact Arm Ass’y, 5/16″ Dia. x 3/8″ W, Steel Wheel, with 1/2″ (13 mm) W Platen
Add to basket £60.76 +VAT
-
Dynabrade 11202 Contact Arm Ass’y, 5/8″ Dia. x 1/8″ W, Rubber Wheel, with 1/4″ (6 mm) W Platen
Add to basket £45.87 +VAT
-
Dynabrade 11203 Contact Arm Ass’y, 5/8″ Dia. x 3/8″ W, Rubber Wheel, with 1/2″ (13 mm) W Platen
Add to basket £45.87 +VAT
-
Dynabrade 11204 Contact Arm Ass’y, 1″ Dia. x 3/8″ W, Radiused Rubber Wheel, Loose Belt Application
Add to basket £45.87 +VAT
-
Dynabrade 11206 Contact Arm Ass’y, 3/4″ Dia. x 5/8″ W, Rubber Wheel, with 3/4″ (19 mm) W Platen
Add to basket £53.88 +VAT
-
Dynabrade 11220 Contact Arm Ass’y, 5/16″ Dia. x 5/8″ W, Steel Wheel, Polish Turbine Blades
Add to basket £198.77 +VAT
-
Dynabrade 11280 Contact Arm Ass’y, 1″ Da. x 3/8″ W, Tapered Rubber Wheel, No Platen/Offset Design
Add to basket £74.53 +VAT
-
Dynabrade 11286 Contact Arm Ass’y, 5/8″ Dia. x 3/8″ W, Rubber Wheel, with 1/2″ (13 mm) W Platen
Add to basket £80.25 +VAT
-
Dynabrade 11287 Contact Arm Ass’y, 3/4″ Dia. x 5/8″ W, Rubber Wheel, with 3/4″ (19 mm) Platen
Add to basket £101.51 +VAT
-
Dynabrade 11300 Contact Arm Ass’y, 1/4″ Dia. x 3/8″ W, Steel Wheel, Polish Turbine Blades
Add to basket £85.99 +VAT
-
Dynabrade 11301 Contact Arm Ass’y, 5/16″ Dia. x 3/8″ W, Steel Wheel, Polish Turbine Blades
Add to basket £85.99 +VAT
-
Dynabrade 11304 Contact Arm Ass’y, 5/8″ Dia. x 3/8″ W, Rubber Wheel, Banana Arm
Add to basket £48.07 +VAT
-
Dynabrade 11305 Contact Arm Ass’y, 3/8″ Dia. x 1″ W, 40 Duro
Add to basket £50.85 +VAT
-
Dynabrade 11312 Contact Arm Ass’y, 5/8″ Dia. x 3/8″ W, Rubber Wheel, H.D. Version of 11203 Arm
Add to basket £85.99 +VAT
-
Dynabrade 11314 Contact Arm Ass’y, 5/16″ Dia. x 1/8″ W, Steel Wheel, with 1/4″ (6 mm) W Platen
Add to basket £100.88 +VAT
-
Dynabrade 11320 Contact Arm Ass’y, 5/8″ Dia. x 3/8″ W, Rubber Wheel, Offset to Prevent Gouging
Add to basket £45.87 +VAT
-
Dynabrade 11321 Contact Arm Ass’y, 7/16″ Dia. x 3/8″ W, Rubber Wheel, with 1/2″ (13 mm) W Platen
Add to basket £74.53 +VAT
-
Dynabrade 11322 Contact Arm Ass’y, 5/8″ Dia. x 3/8″ W, Rubber Wheel, with Guide Wheels
Add to basket £113.49 +VAT
-
Dynabrade 11329 Contact Arm Ass’y, 5/8″ Dia. x 3/8″ W, Rubber Wheel, with 1/2″ (13 mm) W Platen – 17″ (432 mm) Reach
Add to basket £74.53 +VAT
-
Dynabrade 11330 Contact Arm Ass’y, 7/8″ Dia. x 1/8″ W, Brass Wheel, with 1/4″ (6 mm) W Platen
Add to basket £55.48 +VAT
-
Dynabrade 11337 Contact Arm Ass’y, 5/16″ Dia. x 5/8″ W, Steel Wheel, with 1/2″ (13 mm) W Platen
Add to basket £59.61 +VAT
-
Dynabrade 11341 Contact Arm Ass’y, 5/16″ Dia. x 3/8″ W, Rubber Wheel, Polish Turbine Blades
Add to basket £94.77 +VAT
-
Dynabrade 11350 Contact Arm Ass’y, 5/16″ Dia. x 5/8″ W, Steel Wheel, Bus Bar Arm – 11″ (279 mm) Reach
Add to basket £134.06 +VAT
-
Dynabrade 11360 Contact Arm Ass’y, 5/8″ Dia. x 3/8″ W, Rubber Wheel, No Platen/Offset Design
Add to basket £49.00 +VAT
Accessories for the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum
-
Dynabrade 53409 Short Block, .3Hp-7′, 10- Tooth
Add to basket £228.17 +VAT
-
Dynabrade 94300 1/4″ NPT Composite Dynaswivel
Add to basket £19.54 +VAT
Consumables for the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum
-
16x457mm Surface Conditioning Belts
Select options £26.81 – £32.32 +VAT
-
16x457mm Zirconia/Aluminium Oxide Belts, Grits 40-400
Select options £54.55 – £60.62 +VAT
-
16x521mm Surface Conditioning Belts
Select options £30.48 – £36.72 +VAT
-
16x521mm Zirconia/Aluminium Oxide Belts, Grits 40-400
Select options £56.76 – £63.70 +VAT
-
19x457mm Surface Conditioning Belts
Select options £26.54 – £32.15 +VAT
-
19x457mm Zirconia/Aluminium Oxide Belts, Grits 40-400
Select options £21.00 – £33.35 +VAT
-
19x521mm Surface Conditioning Belts
Select options £30.28 – £36.84 +VAT
-
19x521mm Zirconia/Aluminium Oxide Belts, Grits 40-400
Select options £22.80 – £34.21 +VAT
-
Norton R976 Red-X Ceramic Belts 16x457mm, Grits 36 – 120, 54/Pack
Select options £46.53 – £48.60 +VAT
-
Norton R976 Red-X Ceramic Belts 16x521mm, Grits 36 – 120, 54/Pack
Select options £53.25 – £55.62 +VAT
On-Site Tool Demonstrations and Video of Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum
Free On-Site UK Tool Demonstrations
Please complete the form below to arrange a tool demonstration for the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.Book a Tool Demonstration
Vibration Readings for the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum
Vibration readings for the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.
Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method | |
Current (3 Axis) | Under 2.5 | 0.6 | ISO 20643 |
Previous (Dominant Axis) | Under 2.5 | 0.3 | S1049 |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum will be sent to your email automatically.
You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).
Health and Safety Executive: Hand-Arm Vibration Guide
Please Note:
Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.Sound and Decibel Readings of the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum
Sound Pressure (dBA) | Sound Power (dBA) |
74 | 85 |
The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum will be sent to your email automatically.
Similar Tools to the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum
-
Dynabrade 11206 Contact Arm Ass’y, 3/4″ Dia. x 5/8″ W, Rubber Wheel, with 3/4″ (19 mm) W Platen
Add to basket £53.88 +VAT
-
Dynabrade 40320 Dynafile II Abrasive Belt Tool, Non-Vacuum
Add to basket £515.60 +VAT
MRP: £594.00 -
Dynabrade 40321 Dynafile II Abrasive Belt Tool Versatility Kit, Non-Vacuum
Add to basket £570.59 +VAT
MRP: £657.36 -
Dynabrade 40324 Dynafile II Abrasive Belt Tool Versatility Kit, Metric Collet, Non-Vacuum
Add to basket £570.59 +VAT
MRP: £657.36 -
Dynabrade 40326 Dynafile II Abrasive Belt Tool, Non-Vacuum
Add to basket £515.60 +VAT
MRP: £594.00 -
Dynabrade 40330 Dynafile II Abrasive Belt Tool, Central Vacuum
Add to basket £699.68 +VAT
MRP: £806.08 -
Dynabrade 40335 Dynafile II Abrasive Belt Tool, for Non-Woven Nylon Belts, Non-Vacuum
Add to basket £515.60 +VAT
MRP: £594.00 -
Dynabrade 40352 Dynafile II Abrasive Belt Tool, Non-Vacuum
Add to basket £515.60 +VAT
MRP: £594.00 -
Dynabrade 40353 Dynafile II Abrasive Belt Tool, for Non-Woven Nylon Belts, Non-Vacuum
Add to basket £515.60 +VAT
MRP: £594.00 -
Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum
Add to basket £633.23 +VAT
MRP: £729.52
Parts Manuals for the Dynabrade 40381 Dynafile II Abrasive Belt Tool, Slow Speed, Non-Vacuum
Dynabrade 40381 Dynafile II Abrasive Belt Tool’ Slow Speed – .4 hp’ 7 Degree Offset’ 5’000 RPM’ Front Exhaust’ for 1/4″-3/4″ W x 18″ L 6-19 mm x 457 mm Belts Dynabrade Manual
