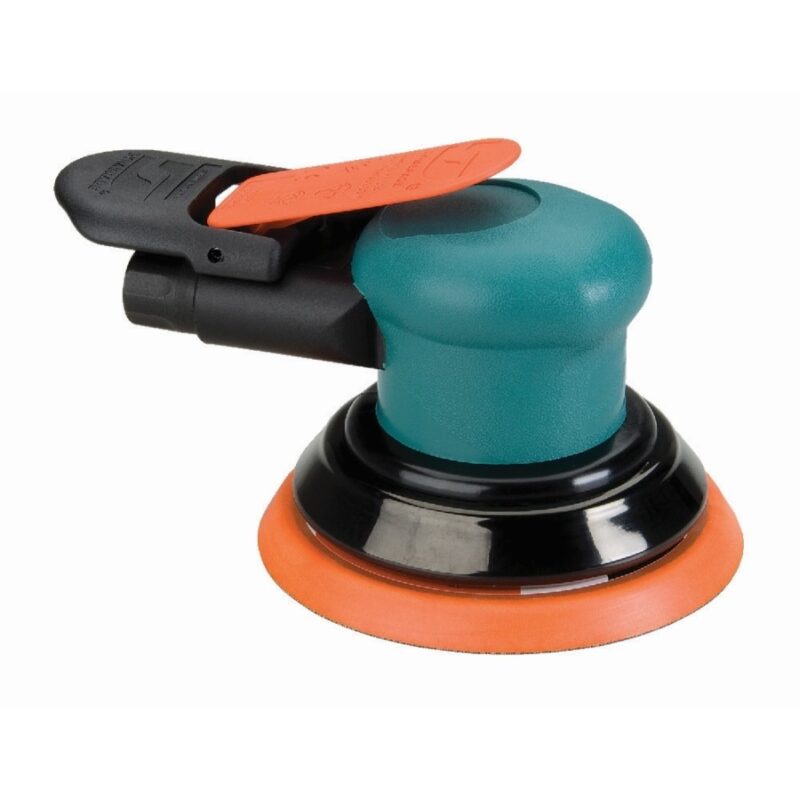

Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum

Dynabrade 59005 5″ (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum

MRP: £220.00

£190.96 +VAT

.25 hp, 12,000 RPM, 3/8″ (10 mm) Dia. Orbit, Rear Exhaust




Main Specifications:



SKU: Dynabrade 59005 Categories: , , , , , Tags: , , , ,

Description

Product Description of Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum

• Includes low profile, premium urethane weight-mated sanding pad. Optional vacuum conversion kits are available to easily convert non-vacuum tool to self-generated vacuum tool or central vacuum tool. Blue lever identifies 3/8" (10 mm) dia. orbit, used for aggressive sanding.
• Drop-In Motor available (sold separately) to reduce costly down-time associated with routine maintenance. More Power - True 12,000 RPM air motor. Floating rotor utilizes five blades, producing more usable power (.25 hp/186 W). High-strength, composite rotor has better lubricating qualities, allowing blades to last longer. Less air (14 SCFM/396 LPM) is used more efficiently to maintain maximum power.
• Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!
• Throttle lever recesses into housing grip when depressed, eliminating pressure-point on operator's palm. Dynorbital-Spirit lever is made from composite material to insulate against cold air. Lever is color-coded to designate tool orbit. Easy maintenance and vacuum conversion. Muffler elements are easily changed for convenient maintenance. Low Sound Levels. Muffling system reduces exhaust sound levels.
• Speed Control allows thumb-control regulating of tool speed. Lighter air-motor assembly, ideal for vertical and overhead sanding applications. Precision one-piece motor shaft and counterbalance. High-quality Double Row Pad Bearing, protected by unique V-Seal, improves bearing life and ensures reduced vibration. Perfectly-balanced, weight-mated sanding pad with one-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration.

The Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum is a Dynabrade tool within the D3 Dynorbital Spirit category of tooling range. Coated abrasives and surface conditioning material Discs of 127mm can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 12000, a power rating of 0.25 (186) with a weight of 0.69kgs.

cut-400250The Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum has a Refined Ergonomic Tool Grip that allows for a more comfortable grip and feel, reducing operator fatigue and increasing efficiency. Perfectly-balanced, weight-mated sanding pad with exclusive single-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration. To read our guide on choosing the correct Dynorbital please read here.

Tool Type

Model Number

59005

Vacuum Type

Max. RPM

Exhaust Type

Power HP (W)

Consumable Shape

Consumable Size

Orbit Diameter

Pad Fixing Type

Item Weight (kgs)

Packaged Weight (kgs)

Other Specifications

, , , , , ,

Vibration Level (m/sec²)

Uncertainty

Vibration Method

Sound Pressure (dBA)

Sound Power (dBA)

Accessories for the Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum

Consumables for the Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum

  • Dynabrade 73243 DG 922 Microfinishing Film Discs, 125mm, P1000, 8+1 holes, 100/Pack

    Dynabrade 73243 DG 922 Microfinishing Film Discs, 125mm, P1000, 8+1 holes, 100/PackAdd to basket £38.00 +VAT

    Read more

  • Dynabrade 73244 DG 922 Microfinishing Film Discs, 125mm, P1200, 8+1 holes, 100/Pack

    Dynabrade 73244 DG 922 Microfinishing Film Discs, 125mm, P1200, 8+1 holes, 100/PackAdd to basket £38.00 +VAT

    Read more

  • Dynabrade 73245 DG 922 Microfinishing Film Discs, 125mm, P1500, 8+1 holes, 100/Pack

    Dynabrade 73245 DG 922 Microfinishing Film Discs, 125mm, P1500, 8+1 holes, 100/PackAdd to basket £38.00 +VAT

    Read more

  • Dynabrade 73246 DG 922 Microfinishing Film Discs, 125mm, P2000, 8+1 holes, 100/Pack

    Dynabrade 73246 DG 922 Microfinishing Film Discs, 125mm, P2000, 8+1 holes, 100/PackAdd to basket £38.00 +VAT

    Read more

  • Dynabrade 73520 DG 922 Microfinishing Film Discs, 125mm, P40, No holes, 100/Pack

    Dynabrade 73520 DG 922 Microfinishing Film Discs, 125mm, P40, No holes, 100/PackAdd to basket £38.00 +VAT

    Read more

  • Dynabrade 73521 DG 922 Microfinishing Film Discs, 125mm, P60, No holes, 100/Pack

    Dynabrade 73521 DG 922 Microfinishing Film Discs, 125mm, P60, No holes, 100/PackAdd to basket £38.00 +VAT

    Read more

  • Dynabrade 73522 DG 922 Microfinishing Film Discs, 125mm, P80, No holes, 100/Pack

    Dynabrade 73522 DG 922 Microfinishing Film Discs, 125mm, P80, No holes, 100/PackAdd to basket £38.00 +VAT

    Read more

  • Dynabrade 73523 DG 922 Microfinishing Film Discs, 125mm, P100, No holes, 100/Pack

    Dynabrade 73523 DG 922 Microfinishing Film Discs, 125mm, P100, No holes, 100/PackAdd to basket £38.00 +VAT

    Read more

  • Dynabrade 73524 DG 922 Microfinishing Film Discs, 125mm, P120, No holes, 100/Pack

    Dynabrade 73524 DG 922 Microfinishing Film Discs, 125mm, P120, No holes, 100/PackAdd to basket £38.00 +VAT

    Read more

  • Dynabrade 73525 DG 922 Microfinishing Film Discs, 125mm, P150, No holes, 100/Pack

    Dynabrade 73525 DG 922 Microfinishing Film Discs, 125mm, P150, No holes, 100/PackAdd to basket £38.00 +VAT

    Read more

On-Site Tool Demonstrations and Video of Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum

Free On-Site UK Tool Demonstrations

Please complete the form below to arrange a tool demonstration for the Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum or any of the Dynabrade range of tooling.  Alternatively please call us on 01273 468736.

Book a Tool Demonstration

    For our privacy policy please click here.

Vibration Readings for the Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum

Vibration readings for the Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

 Vibration Level EN1296 (m/sec²)Uncertainty EN1296 (m/sec²)Vibration Test Method
Current (3 Axis)12.51.7ISO 28927-3
Previous (Dominant Axis)Under 2.51.2ISO 8662-8

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum will be sent to your email automatically.

    For our privacy policy please click here.

You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).

Health and Safety Executive: Hand-Arm Vibration Guide

Please Note:

Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

Sound and Decibel Readings of the Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum

Sound Pressure (dBA)Sound Power (dBA)
7384

The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum will be sent to your email automatically.

    For our privacy policy please click here.

Similar Tools to the Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum

Parts Manuals for the Dynabrade 59005 5" (127 mm) Dia. Dynorbital-Spirit Random Orbital Sander, Non-Vacuum

Dynabrade 59005 5″ 127 mm Dia. Non-Vacuum Dynorbital-Spirit Random Orbital Sander – .25 hp’ 12’000 RPM’ 3/8″ 10 mm Dia. Orbit’ Rear Exhaust Dynabrade Manual

View the Dynabrade 59005



Find the FIVE digit number for your part and enter it below with your desired quantity. You can add more parts by adding new rows – add all items to your cart in one go by clicking ‘Add to Cart’.

ProductQuantityPrice
Total Price:

Posted in Dynabrade Parts Manuals | Comments Off on Dynabrade 59005 5″ 127 mm Dia. Non-Vacuum Dynorbital-Spirit Random Orbital Sander – .25 hp’ 12’000 RPM’ 3/8″ 10 mm Dia. Orbit’ Rear Exhaust Dynabrade Manual
