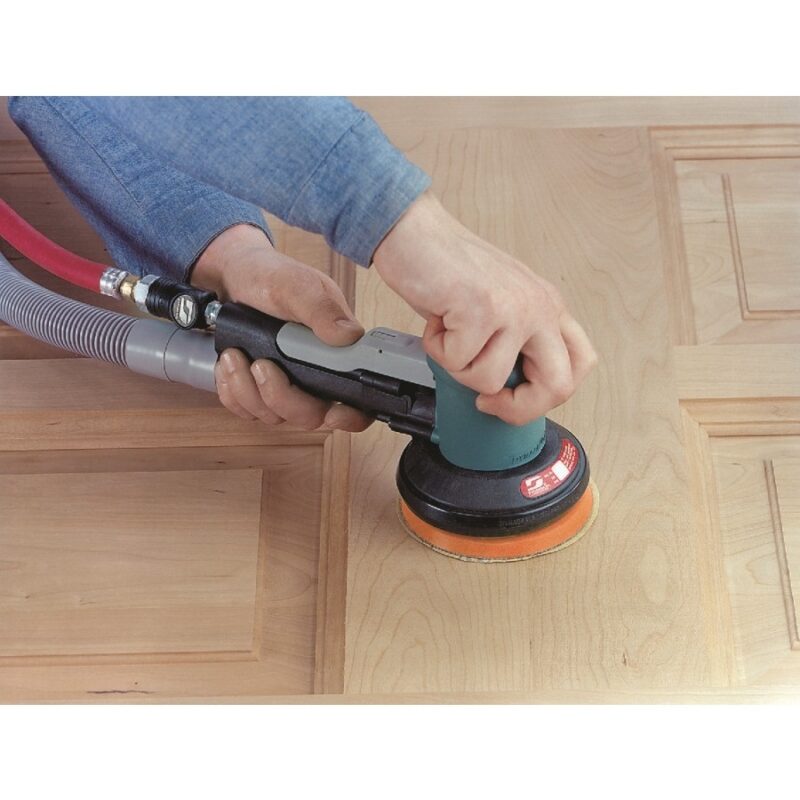

Name: Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum
SKU: Dynabrade 58401
Price: 388.86 GBP
Availability: InStock

Description

Product Description of Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum

• Self-generated vacuum models are ready for connection to optional portable dust collection system. Vacuum port accepts 1-1/4" (32 mm) diameter hose cuff for increased vacuum flow (no overskirt shroud is included). Not recommended for use with external or central vacuum system
• Model is 12,000 RPM. Pads have 5/16"-24 male spindle.
• 3/16" (5 mm) diameter orbit for general sanding.

The Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum is a Dynabrade tool within the Two-Hand Dynorbital category of tooling range. Coated abrasives and surface conditioning material Discs of 127mm can be used which can also be supplied by DynaShop. A Self-Generated tool with a maximum RPM of 12000, a power rating of 0.45 (336) with a weight of 1.1kgs.

cut-400250 The Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum has a Refined Ergonomic Tool Grip that allows for a more comfortable grip and feel, reducing operator fatigue and increasing efficiency. Perfectly-balanced, weight-mated sanding pad with exclusive single-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration. To read our guide on choosing the correct Dynorbital please read here.

Tool Type	Two-Hand Dynorbital
Model Number	58401
Vacuum Type	Self-Generated
Max. RPM	12000
Exhaust Type	Rear
Power HP (W)	0.45 (336)
Consumable Shape	Disc
Consumable Size	127mm
Orbit Diameter	3/16" (5)
Pad Fixing Type	Velcro/Hook-Face
Item Weight (kgs)	1.1
Packaged Weight (kgs)	1.57
Other Specifications	Height Inches (mm): 4-15/16" (126), Hose Internal Diameter Inches (mm): 1/4" (6), Item Weight: 1.1 kg, Length Inches (mm): 11-1/16" (281), Max. Air Flow/Range @ 90 PSIG (6.2 Bar) SCFM (L/Min.): 23 (651), Packaged Weight: 1.57 kg, Thread Size: 5/16"-24 Female
Vibration Level (m/sec²)	4.3
Uncertainty	0.9
Vibration Method	ISO 28927-3
Sound Pressure (dBA)	84
Sound Power (dBA)	84

Accessories for the Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum

Dynabrade 94300 1/4″ NPT Composite Dynaswivel
Add to basket £19.53 +VAT
Compare
Read more
Dynabrade 98220 5″/6″ Random, Dynalocke & 5″ Dynabuffer Tune Up Kit
Add to basket £115.80 +VAT
Compare
Read more

Dynamaze Backing Pad for the Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum

Easy to mount and ensures optimum performance when used with the Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum. This new hook-face pad accepts all abrasive types (coated, film discs, mesh, etc.) and all abrasive hole configurations. Due to the transparent mesh/hook-face surface, it ensures a fast and easy positioning of the abrasive and guarantees efficient sanding process due to excellent dust extraction. Dynabrade exclusive one-piece hub design assures an extraordinary pad centering and balancing, while it is easily mounted on any Random Orbital Sander. Vibration is dramatically reduced and operator comfort increases, as well as the surface quality and vacuum efficiency on all materials. DynaMaze allows operators to work with only ONE back-up pad. The quick exchange of any abrasive reduces production time. It offers state-of-the-art vacuum technology, retaining all standard features of Dynabrade renowned pads.

On-Site Tool Demonstrations and Video of Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum

Free On-Site UK Tool Demonstrations

Please complete the form below to arrange a tool demonstration for the Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.

Book a Tool Demonstration

Vibration Readings for the Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum

Vibration readings for the Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

	Vibration Level EN1296 (m/sec²)	Uncertainty EN1296 (m/sec²)	Vibration Test Method
Current (3 Axis)	4.3	0.9	ISO 28927-3
Previous (Dominant Axis)	Under 2.5	1.3	ISO 8662-8

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum will be sent to your email automatically.

You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).

Health and Safety Executive: Hand-Arm Vibration Guide

Please Note:

Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

Sound and Decibel Readings of the Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum

Sound Pressure (dBA)	Sound Power (dBA)
84	95

The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.

Would you like this data in an email?

Parts Manuals for the Dynabrade 58401 5" (127 mm) Dia. Two-Hand Dynorbital Random Orbital Sander , Self-Generated Vacuum
