Description

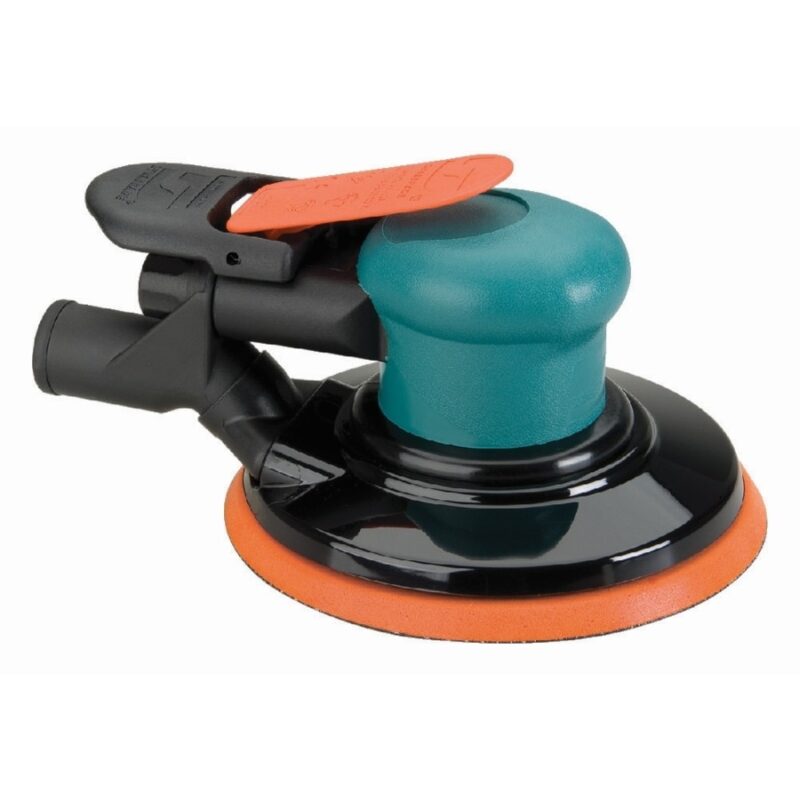

Product Description of Dynabrade 59014 6" (152mm) Dia. Dynorbital-Spirit Random Orbital Sander, Central Vacuum
• Includes low profile, premium urethane weight-mated sanding pad. Blue lever identifies 3/8" (10 mm) dia. orbit, used for aggressive sanding.
• Drop-In Motor available (sold separately) to reduce costly down-time associated with routine maintenance. More Power - True 12,000 RPM air motor. Floating rotor utilizes five blades, producing more usable power (.25 hp/186 W). High-strength, composite rotor has better lubricating qualities, allowing blades to last longer. Less air (14 SCFM/396 LPM) is used more efficiently to maintain maximum power.
• Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!
• Throttle lever recesses into housing grip when depressed, eliminating pressure-point on operator's palm. Dynorbital-Spirit lever is made from composite material to insulate against cold air. Lever is color-coded to designate tool orbit. Easy maintenance and vacuum conversion. Muffler elements are easily changed for convenient maintenance. Low Sound Levels. Muffling system reduces exhaust sound levels.
• Speed Control allows thumb-control regulating of tool speed. Lighter air-motor assembly, ideal for vertical and overhead sanding applications. Precision one-piece motor shaft and counterbalance. High-quality Double Row Pad Bearing, protected by unique V-Seal, improves bearing life and ensures reduced vibration. Perfectly-balanced, weight-mated sanding pad with one-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration.
The Dynabrade 59014 6" (152mm) Dia. Dynorbital-Spirit Random Orbital Sander, Central Vacuum has a Refined Ergonomic Tool Grip that allows for a more comfortable grip and feel, reducing operator fatigue and increasing efficiency. Perfectly-balanced, weight-mated sanding pad with exclusive single-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration. To read our guide on choosing the correct Dynorbital please click here.
Parts Manuals for the Dynabrade 59014 6" (152mm) Dia. Dynorbital-Spirit Random Orbital Sander, Central Vacuum
Find the five digit number for your part(s) in the parts manual below, and click the link to open a new tab where you can add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.
Current Manual
Tune-Up Kit
Book a Dynabrade Repair
Vibration & Sound Readings for the Dynabrade 59014 6" (152mm) Dia. Dynorbital-Spirit Random Orbital Sander, Central Vacuum
Please note – The vibration readings provided for the Dynabrade 59014 6" (152mm) Dia. Dynorbital-Spirit Random Orbital Sander, Central Vacuum are based on laboratory results in very specific sets of conditions. Vibration levels are dependent on a number of factors that include, among many others; the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than real-world values measured in your own specific application.
| Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method |
| Under 2.5 | 1 | ISO 8662-8 |
| Sound Pressure (dBA) | Sound Power (dBA) |
| 79 | 90 |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 59014 6" (152mm) Dia. Dynorbital-Spirit Random Orbital Sander, Central Vacuum will be sent to your email automatically.
On-Site Tool Demonstrations of the Dynabrade 59014 6" (152mm) Dia. Dynorbital-Spirit Random Orbital Sander, Central Vacuum
Please complete the form below to arrange a tool demonstration for the Dynabrade 59014 6" (152mm) Dia. Dynorbital-Spirit Random Orbital Sander, Central Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.
