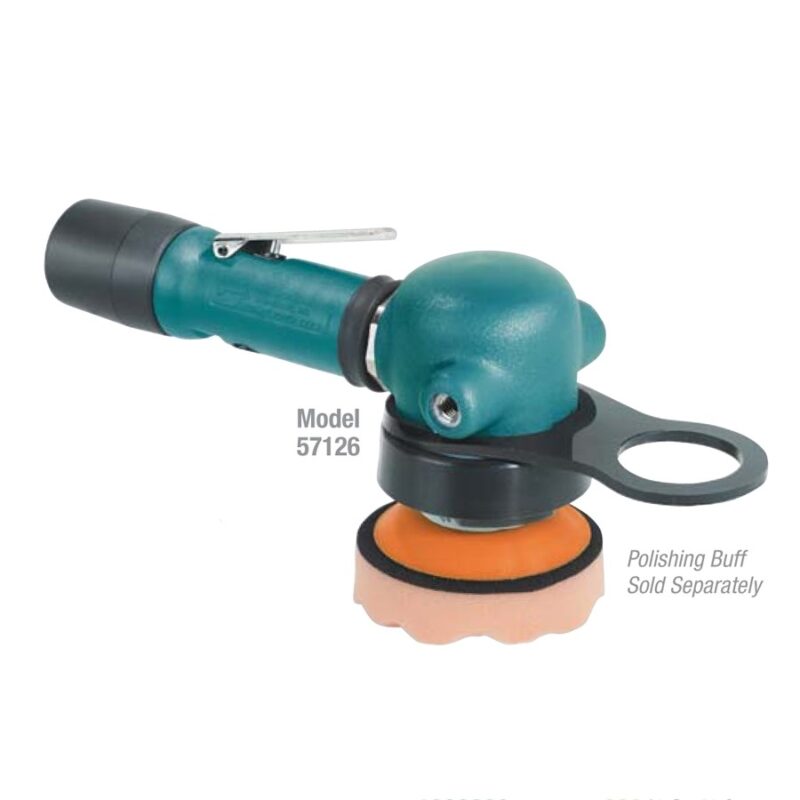

Dynabrade 57126 3″ (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum

MRP: £519.00

£450.49 +VAT

.16 hp, 10,000 RPM, Rear Exhaust, 14 mm Dia. Orbit, 5/16″-24 Female Thread




Main Specifications:



Description

Product Description of the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum

• 3" Dia. Dynabuffer Air-Powered Buffing Tool, ideal for use in Two-Step Polishing System. Excellent for buffing out sanding scratches.
• Dynabuffer moves backup pad and optional polishing buff in 14 mm diameter offset orbit. Tool runs at 10,000 RPM free speed, then slows to 7,000 RPM under load.
• Non-marring housing cover is insulated for operator comfort. Optional 53163 Side Handle available.
• Throttle lever may be positioned for right or left hand operation.
• Tool includes 56142 Hook-Face backup pad, and 97166 Hanger Bracket. Polishing buffs are sold separately.

The Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum is a Dynabrade tool within the Buffing Polisher category of tooling range. Foam Discs of 76mm can be used which can also be supplied by DynaShop.  A Non-Vacuum tool with a maximum RPM of 10000, a power rating (hp/W) of 0.16 (119) with a weight of 1.07kg.

Model Number

57126

Tool Type

Vacuum Type

Max. RPM

Exhaust Type

Power HP (W)

Consumable Shape

Consumable Size

Orbit Diameter

Item Weight (kgs)

Packaged Weight (kgs)

Other Specifications

, , , , , ,

Vibration Level (m/sec²)

Uncertainty

Vibration Method

Sound Pressure (dBA)

Sound Power (dBA)

Accessories for the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum

Consumables for the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum

On-Site Tool Demonstrations and Video of Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum

Free On-Site UK Tool Demonstrations

Please complete the form below to arrange a tool demonstration for the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum or any of the Dynabrade range of tooling.  Alternatively please call us on 01273 468736.

Book a Tool Demonstration

Vibration Readings for the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum

Vibration readings for the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

 Vibration Level EN1296 (m/sec²)Uncertainty EN1296 (m/sec²)Vibration Test Method
Current (3 Axis)Under 2.50.5ISO 28927-3
Previous (Dominant Axis)Under 2.51.3ISO 8662-8

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum will be sent to your email automatically.

You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).

Health and Safety Executive: Hand-Arm Vibration Guide

Please Note:

Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

Sound and Decibel Readings of the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum

Sound Pressure (dBA)Sound Power (dBA)
7182

The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum will be sent to your email automatically.

Similar Tools to the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum

Parts Manuals for the Dynabrade 57126 3" (76 mm) Dia. Dynabuffer Random Orbital Polisher, Non-Vacuum

Dynabrade 57126 3″ 76 mm Dia. Dynabuffer Random Orbital Polisher – .16 hp’ 10’000 RPM’ Rear Exhaust’ 14 mm Dia. Orbit’ 5/16″-24 Female Thread Dynabrade Manual

View the Dynabrade 57126



Find the FIVE digit number for your part and enter it below with your desired quantity. You can add more parts by adding new rows – add all items to your cart in one go by clicking ‘Add to Cart’.

ProductQuantityPrice
Total Price:

Posted in Dynabrade Parts Manuals | Comments Off on Dynabrade 57126 3″ 76 mm Dia. Dynabuffer Random Orbital Polisher – .16 hp’ 10’000 RPM’ Rear Exhaust’ 14 mm Dia. Orbit’ 5/16″-24 Female Thread Dynabrade Manual
