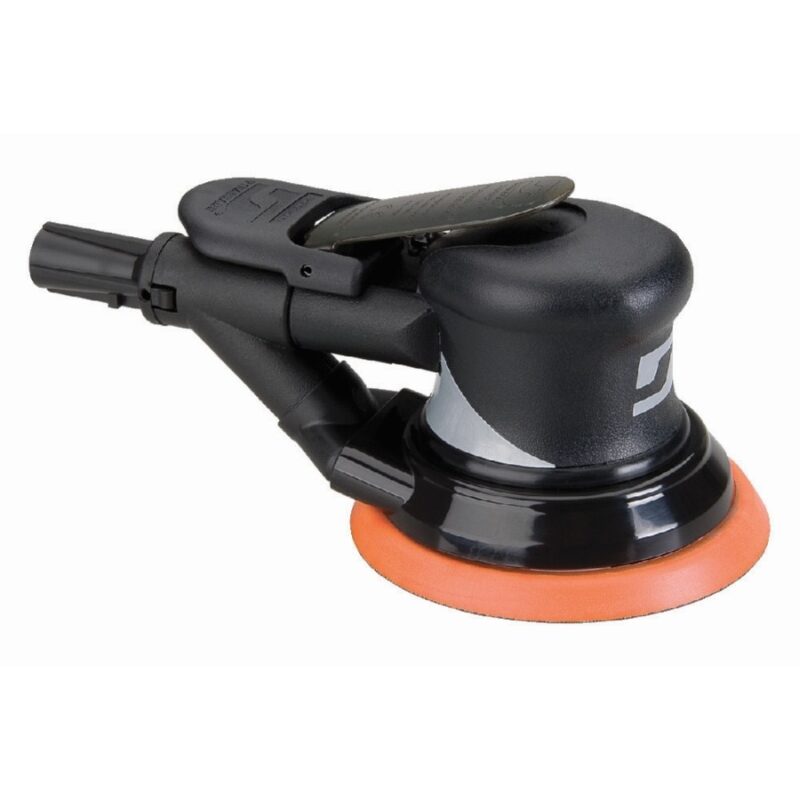

Product Description of Dynabrade 56853 5" (127mm) Dia. Dynorbital Supreme Random Orbital Sander, Self-Generated Vacuum
• Self-Generated Vacuum Dynorbital Supreme includes low profile, premium urethane weight-mated sanding pad. Ready for connection to optional portable self-contained dust collection system. 3/32" (2.5 mm) diameter orbit.
• Dynorbital Supreme models run at 12,000 RPM. Rotor utilizes five blades and produces more useable power. Composite rotor is stronger and has better lubricating qualities, enabling blades to last longer.
• Composite base has integrated rubber over-mold creating a non-slip feel, as well as insulating from cold. The air motor is suspended by vibration-absorbing rubber rings (Patent No. 5,319,888) to minimize vibration.
• Triple-sealed front double row balancer bearing (Patent No. 4,854,085) is guarded from sanding residue for long life and lower maintenance; easy replacement using 57098 Repair Kit.
• Anti-clog design (Patent No. 5,319,888) enhances the vacuum pick-up on self-generated models. Dust particles are directed away from the air motor (reducing contamination) following a smoother, easier path of extraction. Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!
The Dynabrade 56853 5" (127mm) Dia. Dynorbital Supreme Random Orbital Sander, Self-Generated Vacuum has a Refined Ergonomic Tool Grip that allows for a more comfortable grip and feel, reducing operator fatigue and increasing efficiency. Perfectly-balanced, weight-mated sanding pad with exclusive single-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration. To read our guide on choosing the correct Dynorbital please click here.
Parts Manuals for the Dynabrade 56853 5" (127mm) Dia. Dynorbital Supreme Random Orbital Sander, Self-Generated Vacuum
Find the five digit number for your part(s) in the parts manual below, and click the link to open a new tab where you can add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.
Current Manual
Tune-Up Kit
Book a Dynabrade Repair
Vibration & Sound Readings for the Dynabrade 56853 5" (127mm) Dia. Dynorbital Supreme Random Orbital Sander, Self-Generated Vacuum
Important Notice:
The vibration and sound readings provided for the Dynabrade 56853 5" (127mm) Dia. Dynorbital Supreme Random Orbital Sander, Self-Generated Vacuum are based on laboratory testing carried out under controlled conditions.
Actual levels in use can vary significantly depending on factors such as the abrasive material, application, tool maintenance, and operator technique.
These figures should therefore be used as a guideline only. DynaShop and Dynabrade accept no liability for any decisions or assessments made using the listed data instead of measurements taken under your specific operating conditions.
| Vibration Level EN1296 (m/s²) | Uncertainty EN1296 (m/s²) | Vibration Test Method |
|---|---|---|
| Under 2.5 | 1.1 | ISO 8662-8 |
| Sound Pressure (dBA) | Sound Power (dBA) |
|---|---|
| 83 | 94 |
Would you like this data emailed to you?
Fill out the form below and we’ll send the vibration and sound data for the Dynabrade 56853 5" (127mm) Dia. Dynorbital Supreme Random Orbital Sander, Self-Generated Vacuum directly to your inbox.
On-Site Tool Demonstrations of the Dynabrade 56853 5" (127mm) Dia. Dynorbital Supreme Random Orbital Sander, Self-Generated Vacuum
Please complete the form below to arrange a tool demonstration for the Dynabrade 56853 5" (127mm) Dia. Dynorbital Supreme Random Orbital Sander, Self-Generated Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.
