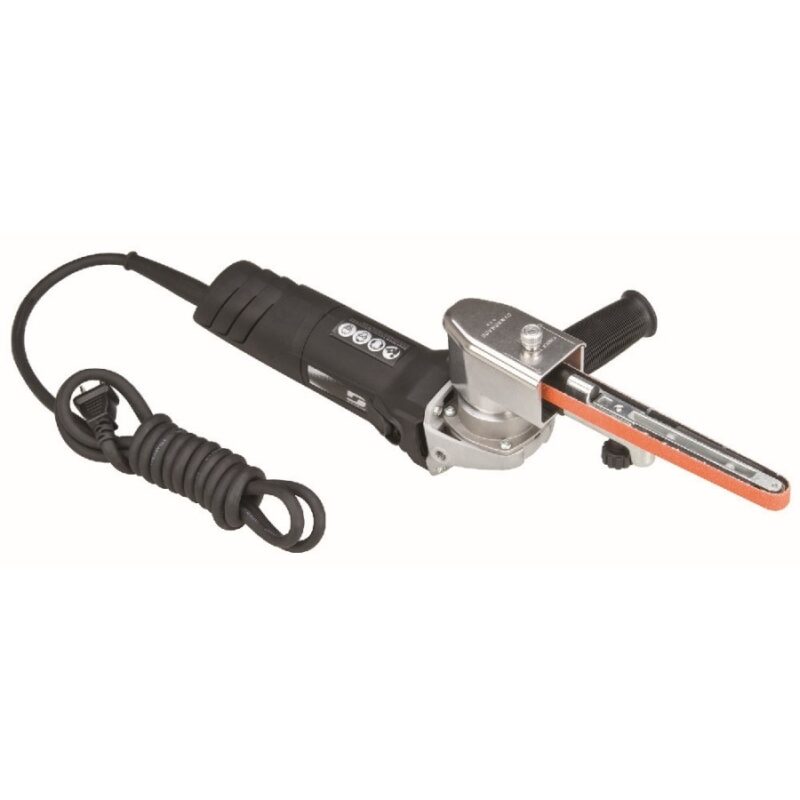

Dynabrade 40610 Electric Dynafile II, Non-Vacuum

MRP: £412.00

£357.62 +VAT

11,000 RPM, 120 V (AC), 7.5 Amp, 60 Hz, for 1/4″-1/2″ W x 18″ L (6-13 mm x 457 mm) Belts

IN STOCK




Main Specifications:



Description

Product Description of the Dynabrade 40610 Electric Dynafile II, Non-Vacuum

• Electric Dynafile® II runs coated abrasive and non-woven nylon belts, and is ideal for countless applications on metal, plastic, etc.
• Grind with contact wheel or platen pad.
• Finish and polish using slack of belt.
• Accepts over 20 Contact Arms (see page 16), for belts 1/8" to 3/4" wide x 18" long.
• Comfortable switch with “lock on” feature.
• Easily accessible brushes for quick replacement.
• Sanding head pivots 360°, for working in previously inaccessible areas.
• Reversible side handle for operator comfort.
• Tool is double-insulated for safety, and includes electric cord, 8 feet in length.

The Dynabrade 40610 Electric Dynafile II, Non-Vacuum is a Dynabrade tool within the Dynafile II category of tooling range. Coated abrasives and surface conditioning material Belts of 13x457mm can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 11000, a power rating (hp/W) of with a weight of kg.

df2-quick-changeMany Dynabrade abrasive belt tools include a swiveling belt guard to make changing belts quick and safe.

Model Number

40610

Tool Type

Vacuum Type

Max. RPM

Configuration

Consumable Shape

Consumable Size

Other Specifications

Contact Arms for the Dynabrade 40610 Electric Dynafile II, Non-Vacuum

Contact arms are able to extend the capabilities of your Dynabrade 40610 Electric Dynafile II, Non-Vacuum as each arm is capable of carrying out a variety of different tasks. Contact arms can make difficult to reach areas easier to access and can also be used for specific purposes such as corner weld removal, strap polishing on tubes, seam removal on pipes or deburring edges. A number of contact arms also have platen pads for flat filing, which can be purchased and replaced when worn.

Accessories for the Dynabrade 40610 Electric Dynafile II, Non-Vacuum

Consumables for the Dynabrade 40610 Electric Dynafile II, Non-Vacuum

  • 13x457mm Surface Conditioning Belts

    13x457mm Surface Conditioning BeltsSelect options £21.40£32.13 +VAT

  • 13x457mm Zirconia/Aluminium Oxide Belts, Grits 40-400

    13x457mm Zirconia/Aluminium Oxide Belts, Grits 40-400Select options £17.40£46.93 +VAT

  • Norton R976 Red-X Ceramic Belts 13x457mm, Grits 36 – 120, 69/Pack

    Norton R976 Red-X Ceramic Belts 13x457mm, Grits 36 - 120, 69/PackSelect options £46.24£48.30 +VAT

  • Sia 2503 Siabite Ceramic Belts 13x457mm, Grits 36 – 120, 69/Pack

    Sia 2503 Siabite Ceramic Belts 13x457mm, Grits 36 - 120, 69/PackSelect options £45.31£47.33 +VAT

On-Site Tool Demonstrations and Video of Dynabrade 40610 Electric Dynafile II, Non-Vacuum

Free On-Site UK Tool Demonstrations

Please complete the form below to arrange a tool demonstration for the Dynabrade 40610 Electric Dynafile II, Non-Vacuum or any of the Dynabrade range of tooling.  Alternatively please call us on 01273 468736.

Book a Tool Demonstration

    For our privacy policy please click here.

Vibration Readings for the Dynabrade 40610 Electric Dynafile II, Non-Vacuum

Vibration readings for the Dynabrade 40610 Electric Dynafile II, Non-Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

 Vibration Level EN1296 (m/sec²)Uncertainty EN1296 (m/sec²)Vibration Test Method
Current (3 Axis)1.340.63ISO 20643
Previous (Dominant Axis)

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 40610 Electric Dynafile II, Non-Vacuum will be sent to your email automatically.

    For our privacy policy please click here.

You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).

Health and Safety Executive: Hand-Arm Vibration Guide

Please Note:

Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

Similar Tools to the Dynabrade 40610 Electric Dynafile II, Non-Vacuum

Parts Manuals for the Dynabrade 40610 Electric Dynafile II, Non-Vacuum

Dynabrade 40610 Electric Dynafile II Manual

View the Dynabrade 40610



Find the FIVE digit number for your part and enter it below with your desired quantity. You can add more parts by adding new rows – add all items to your cart in one go by clicking ‘Add to Cart’.

ProductQuantityPrice
Total Price:

Posted in Dynabrade Parts Manuals | Comments Off on Dynabrade 40610 Electric Dynafile II Manual

Additional information

Model Number

40610

Tool Type

Vacuum Type

Max. RPM

Configuration

Consumable Shape

Consumable Size

Other Specifications
