Description
Product Description of Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
• Dust is extracted away from air motor (reducing contamination) for a smoother, easier path of extraction.
• Anti-clog design for efficient sanding of damp filler material.

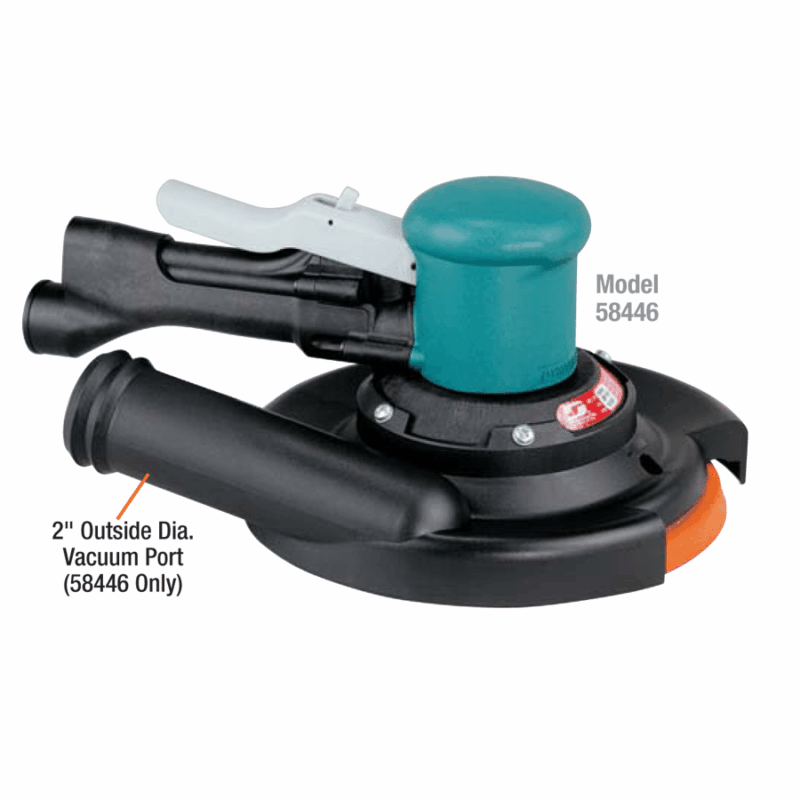

• Includes low profile, premium urethane sanding pad (8 holes). Vacuum shroud has 2" outside diameter vacuum port.
The Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum is a Dynabrade tool within the Gear-Driven Sander category of tooling range. Coated abrasives and surface conditioning material Discs of 203mm can be used which can also be supplied by DynaShop. A Central tool with a maximum RPM of 900, a power rating of 0.45 (336) with a weight of 2kgs.
The Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum has a Refined Ergonomic Tool Grip that allows for a more comfortable grip and feel, reducing operator fatigue and increasing efficiency. Perfectly-balanced, weight-mated sanding pad with exclusive single-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration. To read our guide on choosing the correct Dynorbital please read here.
| Model Number | 58446 |
|---|---|
| Tool Type | |
| Vacuum Type | |
| Max. RPM | |
| Exhaust Type | |
| Power HP (W) | |
| Consumable Shape | |
| Consumable Size | |
| Pad Hole Pattern | |
| Pad Fixing Type | |
| Item Weight (kgs) | |
| Packaged Weight (kgs) | |
| Other Specifications | Height Inches (mm): 5-9/16" (142), Hose Internal Diameter Inches (mm): 1/4" (6), Item Weight: 2 kg, Length Inches (mm): 12-1/2" (318), Max. Air Flow/Range @ 90 PSIG (6.2 Bar) SCFM (L/Min.): 23 (651), Packaged Weight: 2.5 kg, Thread Size: 5 Screws |
| Vibration Level (m/sec²) | |
| Uncertainty | |
| Vibration Method | |
| Sound Pressure (dBA) | |
| Sound Power (dBA) |
Accessories for the Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
-
Dynabrade 94300 1/4″ NPT Composite Dynaswivel
Add to basket £19.54 +VAT -
Dynabrade 98221 Tune-Up Kit
Add to basket £120.38 +VAT
Consumables for the Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
No products were found matching your selection.
On-Site Tool Demonstrations and Video of Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
Free On-Site UK Tool Demonstrations
Please complete the form below to arrange a tool demonstration for the Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.Book a Tool Demonstration
Vibration Readings for the Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
Vibration readings for the Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.
| Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method | |
| Current (3 Axis) | 12 | 2.9 | ISO 28927-3 |
| Previous (Dominant Axis) | 5.8 | 2.3 | ISO 8662-8 |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum will be sent to your email automatically.
You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).
Health and Safety Executive: Hand-Arm Vibration Guide
Please Note:
Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.Sound and Decibel Readings of the Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
| Sound Pressure (dBA) | Sound Power (dBA) |
| 76 | 87 |
The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum will be sent to your email automatically.
Similar Tools to the Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
-
Dynabrade 58040 11″ (279 mm) Dia. Two-Hand Gear-Driven Sander , Non-Vacuum
Add to basket £524.00 +VAT MRP: £603.68 -
Dynabrade 58041 11″ (279 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
Add to basket £582.05 +VAT MRP: £670.56 -
Dynabrade 58441 5″ (127 mm) Dia. Two-Hand Gear-Driven Sander , Non-Vacuum
Add to basket £377.34 +VAT MRP: £434.72 -
Dynabrade 58442 6″ (152 mm) Dia. Two-Hand Gear-Driven Sander , Non-Vacuum
Add to basket £377.34 +VAT MRP: £434.72 -
Dynabrade 58443 6″ (152 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
Add to basket £397.20 +VAT MRP: £457.60 -
Dynabrade 58444 6″ (152 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
Add to basket £397.20 +VAT MRP: £457.60 -
Dynabrade 58445 8″ (203 mm) Dia. Two-Hand Gear-Driven Sander , Non-Vacuum
Add to basket £397.20 +VAT MRP: £457.60 -
Dynabrade 58446 8″ (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
Add to basket £406.37 +VAT MRP: £468.16
Parts Manuals for the Dynabrade 58446 8" (203 mm) Dia. Two-Hand Gear-Driven Sander , Central Vacuum
Dynabrade 58446 8″ 203 mm Dia. Two-Hand Gear-Driven Sander’ Central Vacuum – .45 hp’ 900 RPM’ Rear Exhaust’ Vinyl-Face Pad Dynabrade Manual
