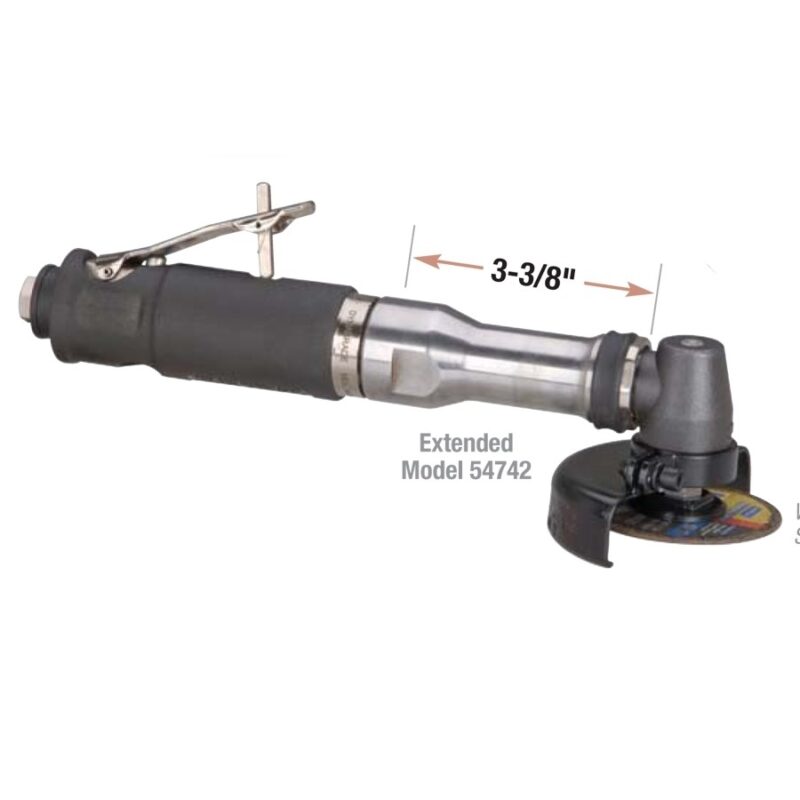

Product Description of Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum
• Dual-wick lubrication system saturates gears with oil for increased performance, extended life and reduced downtime.
• Adjustable wheel guard provides maximum operator protection.
• Steel housings offer increased durability! Model includes steel right angle housing.
• Extension design allows longer reach on work-piece, and two-hand control for added comfort.
The Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum is a Dynabrade tool within the Cut-Off Wheel Tool category of tooling range. Type 1 Wheels of 76mm can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 18000, a power rating (hp/W) of 0.7 (522) with a weight of 1.91kg.
| Tool Type | |
|---|---|
| Model Number | 54742 |
| Vacuum Type | |
| Max. RPM | |
| Exhaust Type | |
| Power HP (W) | |
| Consumable Shape | |
| Consumable Size | |
| Item Weight (kgs) | |
| Packaged Weight (kgs) | |
| Other Specifications | Air Inlet Thread: 1/4" NPT, Height Inches (mm): 3-1/8" (79), Hose Internal Diameter Inches (mm): 3/8" (10), Item Weight: 1.91 kg, Length Inches (mm): 11-7/16" (290), Max. Air Flow/Range @ 90 PSIG (6.2 Bar) SCFM (L/Min.): 41 (1,161), Packaged Weight: 2.36 kg, Thread Size: 3/8"-24 Male |
| Vibration Level (m/sec²) | |
| Uncertainty | |
| Vibration Method | |
| Sound Pressure (dBA) | |
| Sound Power (dBA) |
Accessories for the Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum
Dynabrade 01890 .7 hp Motor Ass’y- Hex Drive- Ext., Steel Housing
Add to basket £219.30 +VAT Dynabrade 94300 1/4″ NPT Composite Dynaswivel
Add to basket £19.54 +VAT Dynabrade 98623 Tune-Up Kit for .7 hp Steel Housing, Straight-Line
Add to basket £75.01 +VAT
Consumables for the Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum
On-Site Tool Demonstrations and Video of Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum
Free On-Site UK Tool Demonstrations
Please complete the form below to arrange a tool demonstration for the Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.Book a Tool Demonstration
Vibration Readings for the Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum
Vibration readings for the Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.
| Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method | |
| Current (3 Axis) | 4.8 | 1.6 | ISO 28927-1 |
| Previous (Dominant Axis) | N/A | N/A | N/A |
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum will be sent to your email automatically.
You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).
Health and Safety Executive: Hand-Arm Vibration Guide
Please Note:
Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.Sound and Decibel Readings of the Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum
| Sound Pressure (dBA) | Sound Power (dBA) |
| 79 | 90 |
The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.
Would you like this data in an email?
Simply fill out the form below and the vibration data for the Dynabrade 54742 3" (76 mm) Dia. Extended Right Angle Type 1 Cut-Off Tool, Non-Vacuum will be sent to your email automatically.
