Description

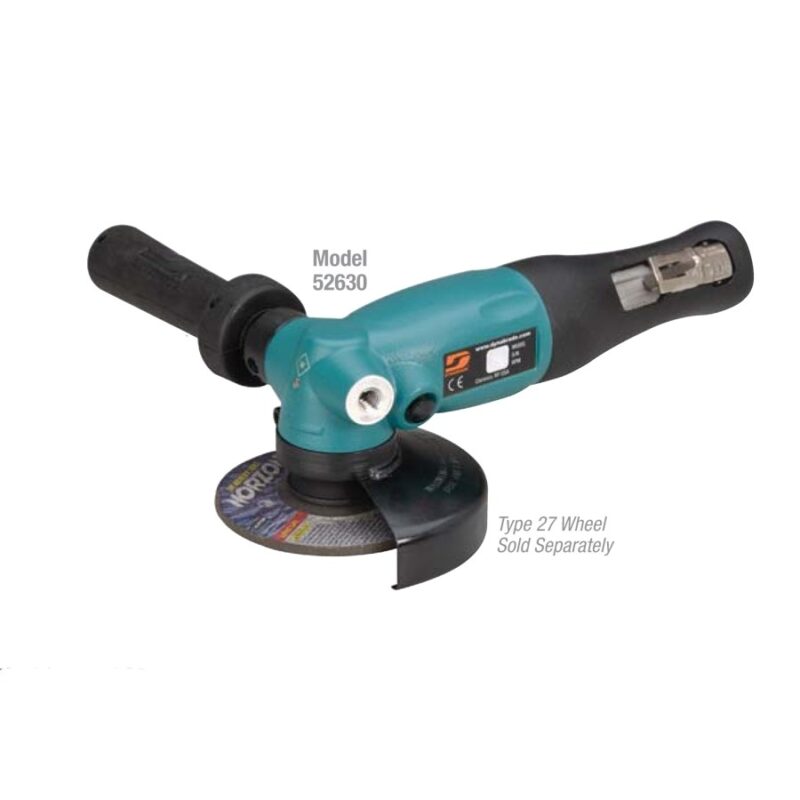

Product Description of Dynabrade 52630 4" (102mm) Dia. Right Angle Depressed Center Wheel Grinder
• 1.3 hp Depressed Center Wheel Grinder is ideal for fast weld and stock removal, heavy deburring, plus rust and scale removal.
• 13,500 RPM, 3/8"-24 Spindle Thread.
• Tool accepts optional 4" (102 mm) diameter Type 27 Depressed Center Wheels with 5/8" (16 mm) center hole.
• Includes Wheel Guard and two Universal Flanges.
• Vibration Dampening Side Handle included.
The Dynabrade 52630 4" (102mm) Dia. Right Angle Depressed Center Wheel Grinder is a Dynabrade tool within the Grinder category of tooling range. Depressed Center Wheels of 102mm can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 13500, a power rating (hp/W) of 1.3 (970) with a weight of 2.18kg.
Parts Manuals for the Dynabrade 52630 4" (102mm) Dia. Right Angle Depressed Center Wheel Grinder
Find the five digit number for your part(s) in the parts manual below, and click the link to open a new tab where you can add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.
Current Manual
Tune-Up Kit
Book a Dynabrade Repair
Vibration & Sound Readings for the Dynabrade 52630 4" (102mm) Dia. Right Angle Depressed Center Wheel Grinder
Please note – The vibration readings provided for the Dynabrade 52630 4" (102mm) Dia. Right Angle Depressed Center Wheel Grinder are based on laboratory results in very specific sets of conditions. Vibration levels are dependent on a number of factors that include, among many others; the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than real-world values measured in your own specific application.
| Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method |
| 3 | 1.5 | ISO 8662-4 |
| Sound Pressure (dBA) | Sound Power (dBA) |
| 83 | 94 |
