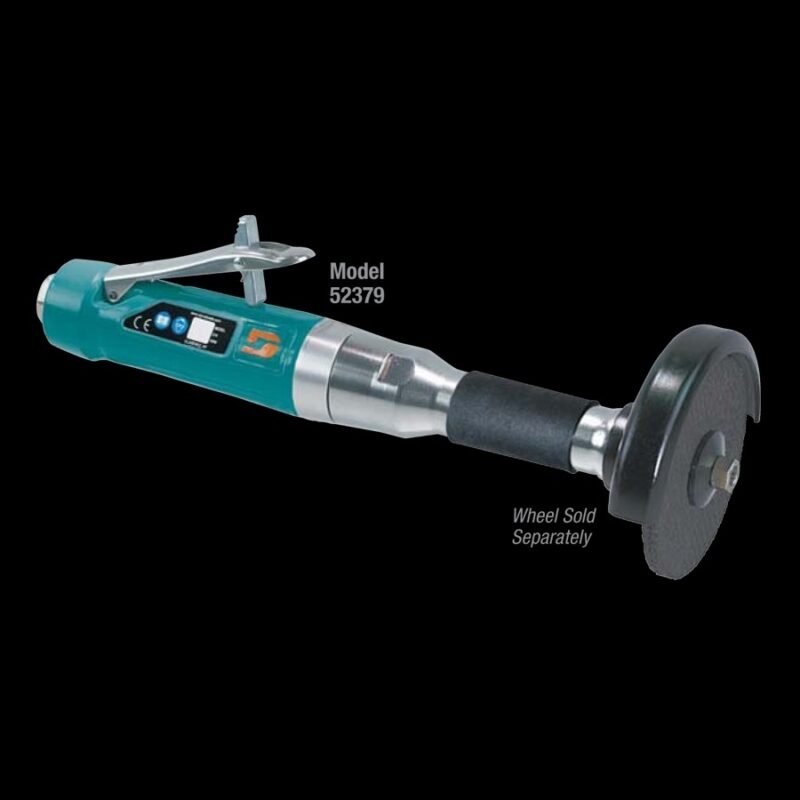

Product Description of Dynabrade 52379 4" (102mm) Dia. Straight-Line Type 1 Extension Wheel Grinder
• Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
• 4" Diameter, Straight Line, 1 hp, 6" Extension, 12,000 RPM.
• Accepts optional 4" diameter Type 1 Wheel, with 3/8" center hole (maximum wheel width of 1/4").
• Governor-controlled motor maintains RPM under heavy load; rear exhaust. Safety-lock lever is included on all models.
• Standard cushioned grip enhances operator comfort and allows additional control.
The Dynabrade 52379 4" (102mm) Dia. Straight-Line Type 1 Extension Wheel Grinder is a Dynabrade tool within the Grinder category of tooling range. Type 1 Wheels of 102mm can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 12000, a power rating (hp/W) of 1.0 (744) with a weight of 2kg.
Parts Manuals for the Dynabrade 52379 4" (102mm) Dia. Straight-Line Type 1 Extension Wheel Grinder
Find the five digit number for your part(s) in the parts manual below, and click the link to open a new tab where you can add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.
Current Manual
Tune-Up Kit
Book a Dynabrade Repair
Vibration & Sound Readings for the Dynabrade 52379 4" (102mm) Dia. Straight-Line Type 1 Extension Wheel Grinder
Important Notice:
The vibration and sound readings provided for the Dynabrade 52379 4" (102mm) Dia. Straight-Line Type 1 Extension Wheel Grinder are based on laboratory testing carried out under controlled conditions.
Actual levels in use can vary significantly depending on factors such as the abrasive material, application, tool maintenance, and operator technique.
These figures should therefore be used as a guideline only. DynaShop and Dynabrade accept no liability for any decisions or assessments made using the listed data instead of measurements taken under your specific operating conditions.
| Vibration Level EN1296 (m/s²) | Uncertainty EN1296 (m/s²) | Vibration Test Method |
|---|---|---|
| Under 2.5 | 0.1 | S1049 |
| Sound Pressure (dBA) | Sound Power (dBA) |
|---|---|
| 74 | 85 |
Would you like this data emailed to you?
Fill out the form below and we’ll send the vibration and sound data for the Dynabrade 52379 4" (102mm) Dia. Straight-Line Type 1 Extension Wheel Grinder directly to your inbox.
On-Site Tool Demonstrations of the Dynabrade 52379 4" (102mm) Dia. Straight-Line Type 1 Extension Wheel Grinder
Please complete the form below to arrange a tool demonstration for the Dynabrade 52379 4" (102mm) Dia. Straight-Line Type 1 Extension Wheel Grinder or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.
