Description

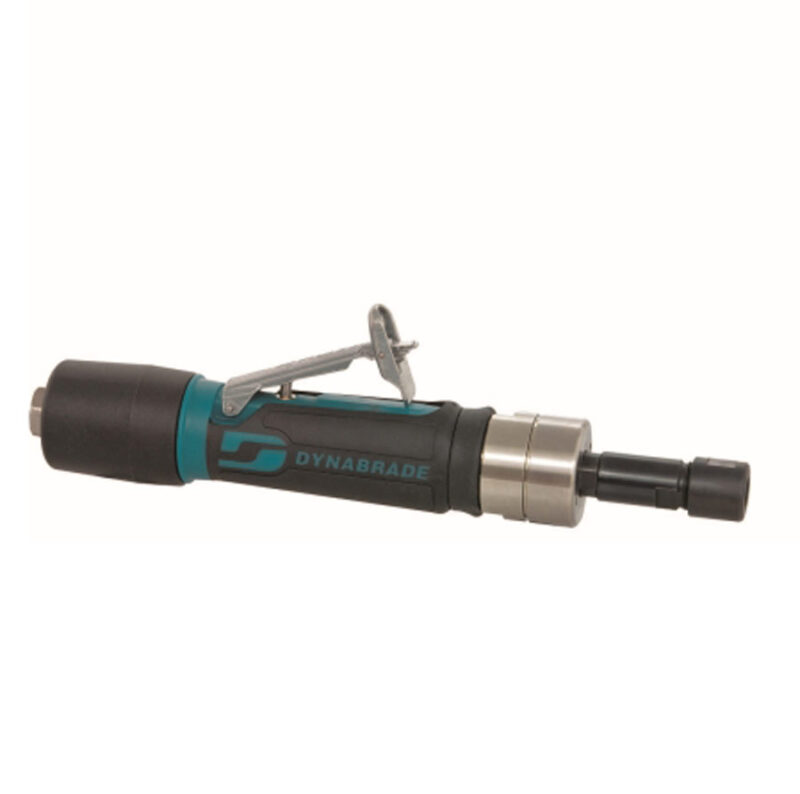

Product Description of Dynabrade 47200 .4 HP Straight-Line Die Grinder
• .4 hp Dynabrade Die Grinders are perfect for use on metal, fiberglass, carbon fiber, composites and more! Dynabrade's .4 hp (298 W) Die Grinders are designed for peak efficiency and longer life! Ideal for rapid material removal, deburring, finishing and polishing, these tools represent the finest in Dynabrade quality and innovation!
• Integrated Safety-Lock Throttle Lever has a contoured shape for operator comfort, with new dowel-pin that minimizes lever wear. Increased Tool Life due to Unique Pre-Filter that provides extra defense against contaminants in air stream.
• Governor-Controlled Motor (950 RPM to 30,000 RPM Models) Maintains consistent motor speed under load. Color-coded for easy identification. Ergonomic Oval-Shaped Tool Housing conforms to natural shape of hand for optimum comfort. Lightweight, tool design; each model weighs 0.5 oz (15 g) less than its previous version!
• 3-Vane Rotor allows wider offering of tool speeds. Achieves stall-torque and horsepower performance equal to tools with 4-vane rotor. Innovative Air Flow Channel Exhaust; air moves through channel between composite housing and housing core, maintaining comfortable temperature of tool housing!
• Hardened Tool Cylinder; Tool cylinder is made of case-hardened material, to retain core toughness and prevent cracking. Full-Length Housing Core; Housing core runs the full length of tool, serving as the backbone and providing consistent weight distribution of tool. Comfortable Tactile Grip; Tools tactile grip is co-molded to composite housing, providing comfortable non-slip grip. Collet Style is 3-Piece. Includes 1/4" Collet Insert (50013) & 6 mm Collet Insert (50016)
The Dynabrade 47200 .4 HP Straight-Line Die Grinder is a Dynabrade tool within the Die Grinder category of tooling range. Spindles of can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 950, a power rating (hp/W) of 0.4 (298) with a weight of 0.86kg.
Parts Manuals for the Dynabrade 47200 .4 HP Straight-Line Die Grinder
Find the five digit number for your part(s) in the parts manual below, and click the link to open a new tab where you can add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.
Current Manual
Tune-Up Kit
Book a Dynabrade Repair
Vibration & Sound Readings for the Dynabrade 47200 .4 HP Straight-Line Die Grinder
Please note – The vibration readings provided for the Dynabrade 47200 .4 HP Straight-Line Die Grinder are based on laboratory results in very specific sets of conditions. Vibration levels are dependent on a number of factors that include, among many others; the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than real-world values measured in your own specific application.
| Vibration Level EN1296 (m/sec²) | Uncertainty EN1296 (m/sec²) | Vibration Test Method |
| Under 2.5 | 0.3 | ISO 8662-13 |
| Sound Pressure (dBA) | Sound Power (dBA) |
| 76 | 87 |
