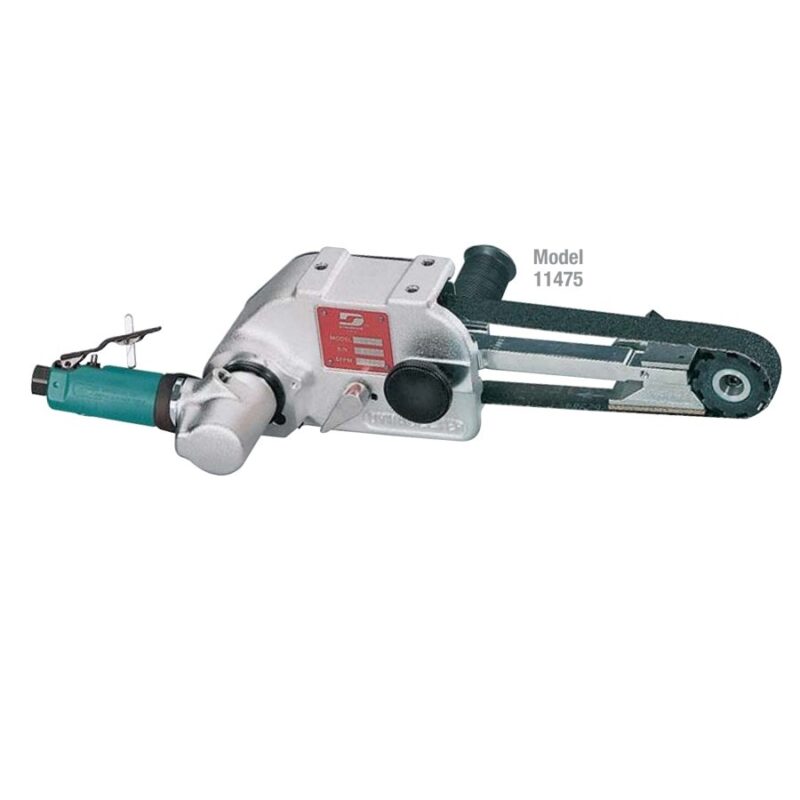

Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

MRP: £1,224.08

£1,032.14 +VAT

.7 hp, 7 Degree Offset, 18,000 RPM, Front Exhaust, for 1/4″-1″ W x 30″ L (6-25 mm x 762 mm) Belts

Compare

Description

Product Description of Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

• For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites.
• Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included.
• Standard Duty, .7 hp model accepts 1" wide x 30" long abrasive belts. Adjustable speed; removable side handle.
• Includes 11681 Contact Arm Assembly.
• Ideal for use with 1/4" Dynaswivel , and 95676 Coupler/Plug Assembly.

The Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum is a Dynabrade tool within the Dynabelter category of tooling range. Coated abrasives and surface conditioning material Belts of 25x762mm can be used which can also be supplied by DynaShop. A Non-Vacuum tool with a maximum RPM of 18000, a power rating (hp/W) of 0.7 (522) with a weight of 2.64kg.

df2-quick-change

Many Dynabrade abrasive belt tools include a swiveling belt guard to make changing belts quick and safe.

Contact Arms for the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

Contact arms are able to extend the capabilities of your Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum as each arm is capable of carrying out a variety of different tasks. Contact arms can make difficult to reach areas easier to access and can also be used for specific purposes such as corner weld removal, strap polishing on tubes, seam removal on pipes or deburring edges. A number of contact arms also have platen pads for flat filing, which can be purchased and replaced when worn.

Accessories for the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

Consumables for the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

On-Site Tool Demonstrations of the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

Please complete the form below to arrange a tool demonstration for the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum or any of the Dynabrade range of tooling. Alternatively please call us on 01273 468736.

Book a Tool Demonstration

    For our privacy policy please click here.

Video of the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

Vibration Readings for the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

Vibration readings for the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum are dependent on a number of factors that include the abrasive being used, the job in hand and operator experience. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

 Vibration Level EN1296 (m/sec²)Uncertainty EN1296 (m/sec²)Vibration Test Method
Current (3 Axis)Under 2.50.6ISO 20643
Previous (Dominant Axis)Under 2.51.3S1049

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum will be sent to your email automatically.

    For our privacy policy please click here.

You can down load the HSE leaflet that explores the jobs which are affected; how to assess and control the risk; what employees need to know; and health surveillance measures. It will help you understand what you need to do to comply with the Control of Vibration at Work Regulations 2005 (The Vibration Regulations 2005).


Health and Safety Executive: Hand-Arm Vibration Guide


Please Note:

Published vibration levels are in accordance with standards EN 12096, ISO 20643 and ISO 28927 series; published sound levels are in accordance with standard ISO 15744. Vibration and sound levels shown are the result of laboratory testing in conformity with these codes and standards, but are not sufficient for risk evaluation. Values measured in a specific workplace may differ from declared values. Actual exposure values and associated risk will be unique to each workplace and workstation. Potential risk to each individual depends on a variety of factors such as workstation design, surrounding environment, operator proficiency, material being worked and amount of exposure time. The employer is responsible for adhering to any applicable legal requirements regarding workplace health and safety and for evaluation of actual vibration and sound levels based on factors affecting the workplace environment. DynaShop or Dynabrade cannot be held responsible for the consequences of using the listed values for risk assessment, rather than actual values unique to each situation.

Sound and Decibel Readings of the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

Sound Pressure (dBA)Sound Power (dBA)
91102

The Control of Noise at Work Regulations 2005 (Noise Regulations 2005) require employers to prevent or reduce risks to health and safety from exposure to noise at work.

Would you like this data in an email?

Simply fill out the form below and the vibration data for the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum will be sent to your email automatically.

    For our privacy policy please click here.

Similar Tools to the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

Parts Manuals for the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum

Find the five digit number for your part(s) in the parts manual below, and enter it in the search box at the top of the page to add it to your basket. Please note that depending on the age of your tool this may not be the correct parts manual - it should however state the range of serial numbers to which it applies at the top left/right of the first page.

Current Manual

Tune-Up Kit

Book a Dynabrade Repair

If you would like to book a repair for the Dynabrade 11475 Dynabelter Abrasive Belt Tool, Standard Duty, Non-Vacuum please use the form below. You will then receive an email - simply place a copy of this email in the box with your tool and send it to the address stated in the email.

  • Tool NameModel NumberComments
    Add a row
    Testing costs £20+VAT per tool and includes a certificate showing the results.
    For our terms & conditions please click here
    For our privacy policy please click here.

Additional information

Tool Type

Model Number

11475

Air Inlet Thread

1/4" NPT

Vacuum Type

Max. RPM

Exhaust Type

Configuration

Power HP (W)

Consumable Shape

Consumable Size

Item Weight (kgs)

Packaged Weight (kgs)

Other Specifications

, , , , , ,

Vibration Level (m/sec²)

Uncertainty

Vibration Method

Sound Pressure (dBA)

Sound Power (dBA)
