Dynabrade Routers

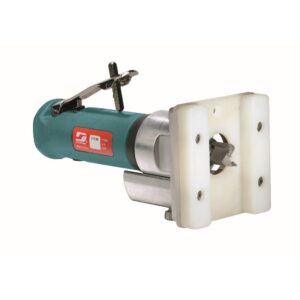

Model 51330 – 20,000 RPM, .7 hp, Front Exhaust
• Ideal for chamfers and roundover cuts on hardwoods, softwoods, solid surfaces or
plastics. Great for laminate trimming, surface planing, beveling and cornering.
• Tool accepts optional high-speed steel router bits with 1/4″ diameter shank capacity.
Also accepts optional 1/8″ collet insert, for mounting 1/8″ diameter router bits.
• Lightweight, non-marring composite fixed base allows for 90° cuts. Base offers easy height adjustment.
• Front exhaust directs chips away from cutter.
• Spindle lock allows one-wrench cutter changing.
• Includes guide rails, ideal for use on glue seams.

.4 hp (298 W) Trim Routers

• Ideal for countless trim routing applications, using templates and template guides on surfaces such as carbon fibre, composites, laminates and more!
• .4 hp air motor is governor-controlled to maintain consistent speed under load.
• “Soft touch” composite tool housing is ergonomically designed for operator comfort.
• Each model includes 1/4″ collet, for accepting optional 1/4″ router bits.

Model 51854 – Complete Trim Router, 30,000 RPM, Rear Exhaust
• Tool includes router nose assembly and 51861 template guide (with 1-1/2″ dia. base). Nose assembly and template guide are nickel-plated for added durability.
• Allows quick adjustment of trim housing depth. Two wrenches included.

.7 hp (522 W) Trim Routers

• Ideal for countless trim routing applications, using templates and template guides on surfaces such as carbon fibre, composites, laminates and more!
• Each model includes 1/4″ collet, for accepting optional 1/4″ router bits.
• Safety-lock throttle lever prevents accidental tool startup, for enhanced workplace safety.

Model 51857 – Complete Trim Router 20,000 RPM, Rear Exhaust
• Tool includes router nose assembly and 51861 template guide (with 1-1/2″ dia. base). Nose assembly and template guide are nickel-plated for added durability.
• Allows quick adjustment of trim housing depth. Two wrenches included.

Vacuum Routers

For Connection to Central Vacuum System • Unique Vacuum Shroud Captures Contaminants

• Vacuum Router is ideal for chamfers and roundover cuts on hardwoods, softwoods, solid surfaces and plastics. Great for laminate trimming, surface planing, beveling and cornering.
• Includes 1″ vacuum port, for easy connection to external central vacuum system. Efficiently captures dust and debris as tool is run.
• Tool accepts optional high-speed router bits with 1/4″ diameter shank capacity.
• Non-marring composite base.
